dB-L12 Automatic Paper Cup Forming Machine

Product Description

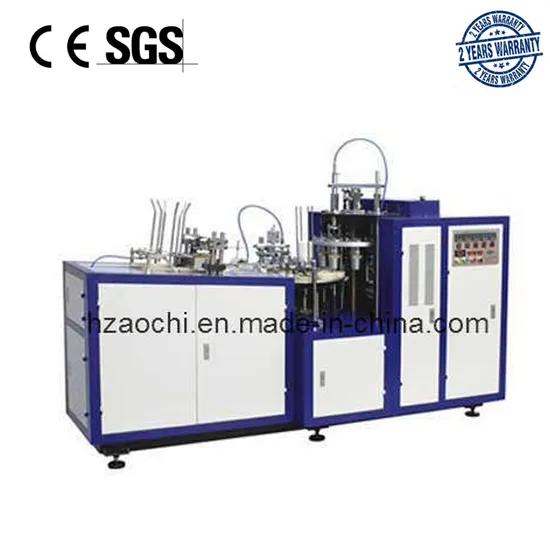

DB-L12 Automatic Paper Cup Forming Machine
Product Description
DB-L12 paper cup forming machine is multi-station automatic machine. It has continuous automatic procedures like feeding, sealing, oil -filling, washing, heating, knurling, convex knurling, curling, unloading, etc. It is ideal equipment for producing paper testing-drinking cups, market cups, advertising cups, etc. It is widely used for hot drink and some beverage.
FEATURE
1) The main-frame of the machine is an incline. And the incline can help the cups easily drop into the plastic holes, the rate of which goes up to 99.99 %. It can reduce paper wasting
2) The shape of the head is oblate, which can seal the cups easily.
3) The machine can send the bottom paper to the cup automatically and adjust itself because of a spring
4) Inside of the machine, we use three ranges chains instead of conventional two ranges chains
5) If your paper is double PE coated, the machine with ultrasonic
Product Parameters

MAIN TECHNICAL DATA
MODEL NO.	DB-L12	DB-C18	DB-C22
product speed	30-55 pcs/min
required paper	135-250 gsm ; 250-380gsm one side or two sides PE coated paper
container size	A)topdia: ¢ 50-90mmB)height: 45-100mmC)bottomdia: ¢ 35-75mmD)knurling: 4.5-10mm
	A)topdia: ¢ 60-128mmB)height: 45-140mmC)bottomdia: ¢ 50-97mmD)knurling: 4.5-10mm
	A)topdia: ¢ 60-128mmB)height: 45-180mmC)bottomdia: ¢ 50-97mmD)knurling: 4.5-10mm
requirement of air supply	working pressure: 0.4-0.6mpa working air: 0.5m 3 /min
total power	220v 50hz 3.8kw or 380.50hz 3.8kw
Attention: 35 days delivery time
weight	1300kg 1550kg 1600kg
Package size	2450X1200X1750mm	2450x1200x1800mm	2700X1300X2000mm

Packaging & Shipping

---
