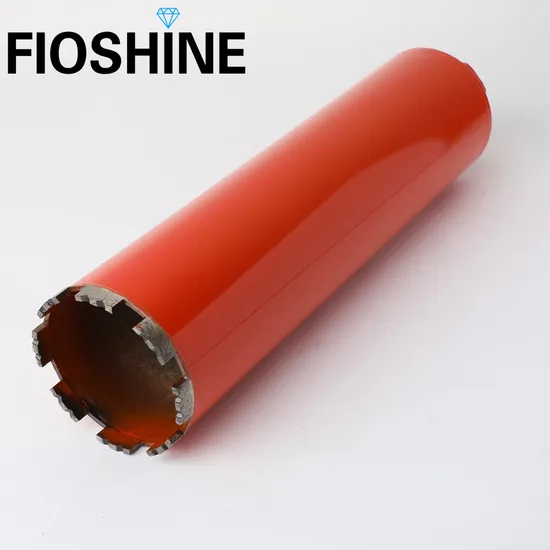

102mm/4inch Laser Welded Concrete Diamond Core Drill

Product Description

Product DescriptionLaser welded diamond core drill bits, using the highest grade diamonds, are designed to be used on concrete, reinforced concrete, brick, block, and other masonry materials.
Turbo segment provides fast drilling and long drilling life, wet use.
Available in sizes 1/2" - 20", working length is 350mm, 450mm and customized length.
Product Parameters

Item No.	Diamter	Segment Height	Connection	Working Length
FSDLT025	25mm	10mm	1 1/4''UNC-7, 1/2BSP	350mm/450mm
FSDLT032	32mm	10mm	1 1/4''UNC-7, 1/2BSP	350mm/450mm
FSDLT038	38mm	10mm	1 1/4''UNC-7, 1/2BSP	350mm/450mm
FSDLT042	42mm	10mm	1 1/4''UNC-7, 1/2BSP	350mm/450mm
FSDLT044	44mm	10mm	1 1/4''UNC-7, 1/2BSP	350mm/450mm
FSDLT051	51mm	10mm	1 1/4''UNC-7, 1/2BSP	350mm/450mm
FSDLT056	56mm	10mm	1 1/4''UNC-7, 1/2BSP	350mm/450mm
FSDLT063	63mm	10mm	1 1/4''UNC-7, 1/2BSP	350mm/450mm
FSDLT072	72mm	10mm	1 1/4''UNC-7, 1/2BSP	350mm/450mm
FSDLT076	76mm	10mm	1 1/4''UNC-7, 1/2BSP	350mm/450mm
FSDLT082	83mm	10mm	1 1/4''UNC-7, 1/2BSP	350mm/450mm
FSDLT089	89mm	10mm	1 1/4''UNC-7, 1/2BSP	350mm/450mm
FSDLT102	102mm	10mm	1 1/4''UNC-7, 1/2BSP	350mm/450mm
FSDLT108	108mm	10mm	1 1/4''UNC-7, 1/2BSP	350mm/450mm
FSDLT114	114mm	10mm	1 1/4''UNC-7, 1/2BSP	350mm/450mm
FSDLT127	127mm	10mm	1 1/4''UNC-7, 1/2BSP	350mm/450mm
FSDLT132	132mm	10mm	1 1/4''UNC-7, 1/2BSP	350mm/450mm
FSDLT142	142mm	10mm	1 1/4''UNC-7, 1/2BSP	350mm/450mm
FSDLT152	152mm	10mm	1 1/4''UNC-7, 1/2BSP	350mm/450mm
FSDLT162	162mm	10mm	1 1/4''UNC-7, 1/2BSP	350mm/450mm
FSDLT172	172mm	10mm	1 1/4''UNC-7, 1/2BSP	350mm/450mm
FSDLT180	180mm	10mm	1 1/4''UNC-7, 1/2BSP	350mm/450mm
FSDLT200	200mm	10mm	1 1/4''UNC-7, 1/2BSP	350mm/450mm
FSDLT228	228mm	10mm	1 1/4''UNC-7, 1/2BSP	350mm/450mm
FSDLT254	254mm	10mm	1 1/4''UNC-7, 1/2BSP	350mm/450mm
FSDLT280	280mm	10mm	1 1/4''UNC-7, 1/2BSP	350mm/450mm
FSDLT305	305mm	10mm	1 1/4''UNC-7, 1/2BSP	350mm/450mm
FSDLT330	330mm	10mm	1 1/4''UNC-7, 1/2BSP	350mm/450mm
FSDLT355	355mm	10mm	1 1/4''UNC-7, 1/2BSP	350mm/450mm
FSDLT406	406mm	10mm	1 1/4''UNC-7, 1/2BSP	350mm/450mm

Our AdvantagesHigh quality diamonds provide fast and long lasting drilling
Great for wet drilling concrete, reinforced concrete, brick, block, and other masonry materials.
Turbo segments provide fast drilling
The thinner wall provides increased drilling speed.
Fit onto all hand-held drill, core drill stand
ApplicationWet diamond core drill bits, using the highest grade diamonds, are designed to be used on concrete, reinforced concrete, brick, block, and other masonry materials.
Turbo segment provides fast drilling and long drilling life, wet use.
Available in sizes 1/2" - 20", working length is 350mm, 450mm and customized length.Common Delivery TimeOur full production capacity is 8000pcs per month, in this case we can ensure a short delivery time.
For samples, 1 week will be well prepared. For bulk order, usually we need 2-3 weeks.
More Diamond ToolsFioshine Diamond Tools offers full range of professional diamond tools, including diamond saw blade, diamond core drill, diamond cup wheels, diamond polishing/grinding pad and diamond wire saw.
Company ProfileFIOSHINE, as an enterprise who specialize in production, R&D and distribution of diamond tools, have been committed to innovating and improving our products to meet market demands and offer you a full range of superior quality diamond products.
Our main products include: laser welded/brazed/sinter hot-pressed diamond saw blades, diamond cup wheels and tooling, laser welded diamond core drills, diamond wire saw…... including tailor-made advice for each application as well as appropriate services. The latest technology as well as management processes have been adopted to achieve the highest level of quality and production efficiency.
FIOSHINE is well known for professional diamond products and services. Our business covers more than 30 countries and regions. We always listen to your requirements and provide you with professional products and solutions. Fioshine always stays close by.

---
