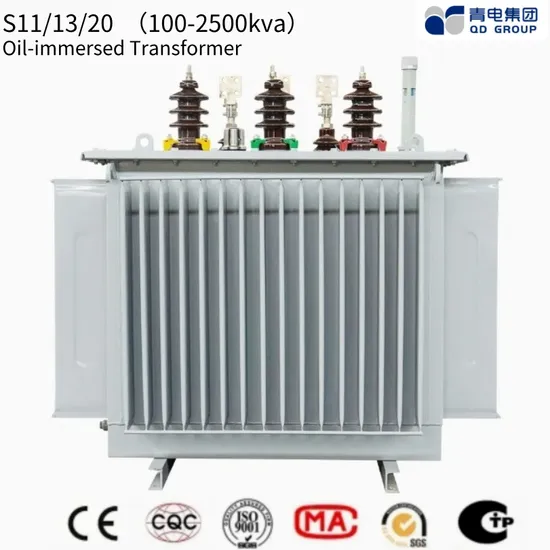

Qingdao Transformer 200- 2500kVA Customizable Parameters 13.2kv/0.4kv Oil-Immersed Transformer

Product Description

Qingdao Electric oil distribution transformer includes hermetically sealed, amorphous alloy, conservator type and on-load tap changer type, which is usually pole mounted or installed in distribution station for daily lighting and factory power whose LV output up to 0.4kV. Our distribution transformer rating is up to 2500kVA, and primary voltage up to 35kV. The corrugated tanks as thermal expansion and contraction component enable the transformer oil completely isolated with the atmosphere. Oil distribution transformer with primary voltage range of 6,10,10.5,11,20,22,24,33, 35,38.5kV can be manufactured according to customer requirements.
Product Introduction

High efficiency, low loss, low noise, strong load resistance and long service life.
Main Characteristics:
1. Designed by patented technology and software with premium performance. 2. Core is made of high quality cold-rolled grain-oriented silicon steel sheet which produced in step-lap technology. 3. Winding is using high strength enameled wire or paper-insulated wire or copper belt, which offers uniform distribution of ampere-turns, reasonable insulation structure with high ability to withstand short-circuit.
4. Oil tank is corrugated type with high corrosion resistance. Tank surface pre-treatment liquid and coating powder adopts international top brands. The tank is degreasing, pickling, phosphorated, electrophoresis by automatic production lines, then power spray coating and heat-solidify. 5. The active part applies core free-hanging structure. The gasket is made of high-quality acrylate rubber which can inhibit ageing caused by sun and heat. Advantages: 1. Low loss, low noise, low partial discharge, high reliability. 2. Safety with elegant appearance. 3. Convenient installation and simple maintenance.
4. Compact with small occupied area.
Applications
1. Building Infrastructure and Industrial: Airports, hospitals, factories, shopping malls, hotels, commercial and residential towers.
2. Utility: Generation, transmission, distribution substations, water and waste water treatment plants.
3. Oil and Gas: Oil and gas plants, petrochemical plants and refineries. Service environment:
1. Ambient temperature: Maximum +40ºC, Minimum -40ºC.Parameters can also be customized according to the customer's environment, such as long-term stable operation in a 55 ºC desert environment 2. Altitude: less than 1000 meters. 3. Seismic level: less than 3m/s2 at horizontal direction and less than 1.5m/s2 at vertical direction. 4. Installation environment: No obvious and heavy pollution, no explosive and corrosive gas and dust, with good air ventilation and no severe vibration and shock. (Note: If the application environment is different from the above standard conditions, please contact for customized designs.)
MAIN PRODUCTION

Production Workshop

Certifications

Packaging & Shipping

The transportation method is generally land or sea. If you have an urgent need for product use, air freight can also be used for transportation. Company Profile

Qingdao Qingdian Electric Group Co., Ltd was established in 2009, is located in Qingdao Jiangshan Industrial Park,Shandong Province, China,covers an area of 25, 000 square meters, including the construction area of 16, 000 square meters, the company ' s total assets of more than 80million yuan, the existing staff of more than 100 people, more than 20 engineers and technicians. Is specialized in power transformers, box - type substation, high and low voltage complete sets of electrical products such as R & D, manufacturing, sales, power engineering installation ( repair, test ) and general contracting as one of the high - tech enterprises.
FAQ: 1.Who are we?
We are manufacturer.We are based in Qingdao, China, established in 2009,sell to Domestic Market(80.00%),Southeast Asia(20.00%).The company's products are sold in various countries in the Arabian Peninsula and Africa, such as Saudi Arabia and the United Arab Emirates. There are all about 120-150 people in our company.
2.How can we guarantee quality?
Always make a final Inspection before shipping,and every product is 1 year quality warrantee under customer correct using the products.
3.What can you buy from us?
110kV-220kV Oil-immersed Power Transformer,Dry-type Transformer,Unpacked H Grade Dry Transformer,Oil-immersed Distribution Transformer, Pad-mounted Transformer,Enameled Wire,Composite Wire,Transposed Wire,Paper Covered Wire,Film Wrapped Wire.
4.Why should you buy from us not from other suppliers?
As an enterprise specializing in transformer production for 15 years, we have high quality, fast delivery, guarantee after-sales service and factory price. What's more, we have ISO9001-2008, OHSAS 18001:2007, ISO4001:2004L ,CE certificates and IEC, ANSI, KEMA, GOST standard.
5.What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW; Accepted Payment Currency:USD,CNY; Accepted Payment Type: T/T,L/C; Language Spoken:English,Chinese.
6.How long is the delivery time for the product?
In general, it take 3~6weeks and it depend on the different style.

---
