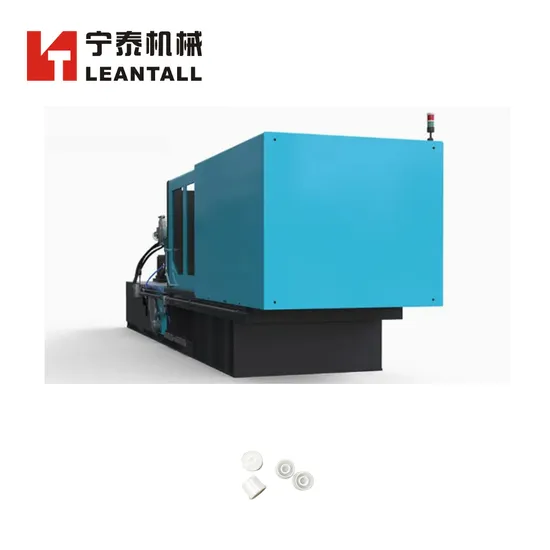

170 Ton Injection Molding Machine Stable and Reliable Performance Preplasticizing Motor Power-Jet

Product Description

Product Parameters

Part	Name	Unit	NT170
Injection Unit	SCREW DIAMETER	mm	42	45	50
	SCREW L/D RATIO	L/D	21.4	20	18
	INJECTION STROKE	mm	235	235	235
	NJECTION SPEED	Mm/sec	138	138	138
	SHOT VOLUME(THEORETICAL)	CM3	325	373	461
	INJECTION WEIGHT(PS)	g	295	339	419
	INJECTION PRESSURE	Mpa	174	152	123
	INJECTION RATE	cm³/sec	191	219	270
	SCREW SPEED	rpm	240
Clamping Unit	CLAMP FORCE	Kn	1700
	OPEN STROKE	mm	435
	SPACE BETWEEN TIE BARS	mm×mm	470X470
	MAX.MOULD HEIGHT	mm	540
	MIN.MOULD HEIGHT	mm	170
	EJECTOR STROKE	mm	129
	EJECTOR FORCE	Kn	61
	EJECTOR NUMBER	N	5
Others	MAX.PUMP PRESSURE	Mpa	16
	SEVRO DRIVE POWER	Kw	23
	HEATING POWER	Kw	9.9
	MACHINE DIMENSION(L*W*H)	m×m×m	5.3*1.35*2.0
	MACHINE WEIGHT(ESTIMATE)	T	5.1

Product Description
Packaging & Shipping
Company Profile
Our Advantages
Q: Are you manufacturer or trading company? A: We are manufacturer with decades experiences,located in Zhejiang province. Q: What is the product range? A: Focus on the manufacture and development of plastic injection molding machines and its auxiliary equipment such as cooling tower, chiller, etc. Q: Where is your main selling market? A: We have business domestic,USA,Russia,Indonesia,Egypt,Turkey ,Uzbekistan, Pakistan,etc. Q: Will you offer field installation and operator training at the buyer's factory? A: Yes,we will arrange our skilled engineers for filed installation and training. Q: What is the delivery time(equipment production time)? A: It will be ready around 50 days after getting mutual confirmation about the order details and prepayment. Q: Do you also have source for molds and spare parts? A: Yes,we can offer with the competitive quality and reasonable price. Customized as required. Q: What is the standard of package? A: Wooden case packing for the auxiliary equipment, bare packing for the plastic injection molding machine. Full container shipment is highly suggest.

---
