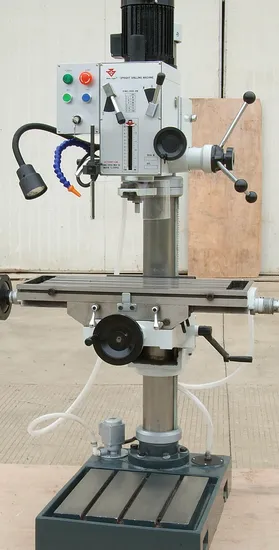

Z5032C Vertical Cross Table Drilling Machine with Ce Standard

Product Description

Features:
Z5032 series: spindle is not auto-feeding
Z5032/1 series: spindle is auto-fedding
Z5032C with cross table
1) Drilling, milling and tapping
2) Head swivels 360 degree horizontally
3) Headstock and Worktable up & down perpendicularly
4) Super high column
5) Precision micro feed
6) Positive spindle lock
7) Distinct auto device for releasing tools, operate easily
8) Geared drive, lower noise
Main specificaiton:

Specification	Z5032/1 Z5040/1 Z5045/1	Z5032 Z5040 Z5045
Max.drilling capacity	Φ32mm/Φ40mm/Φ45mm(1-1/4"/1-5/8"/1-3/4")
Spindle taper	MT3/MT4/R8
Spindle travel	Φ130mm(5-1/8")
Step of spindle speed	6 steps
Range of spindle speed 50Hz	80-1250rpm
60Hz	95-1500rpm
Step of spindle auto-feeding	6 steps	/
Range of spindle auto-feeding amount	0.06-0.30mm/r	/
Min.distance from spindle axis to column	290mm(11-3/8")
Max.distance from spindle nose to worktable	725mm(28-1/2")	700mm(27-1/2")
Max.distance from spindle nose to stand table	1125mm(44-1/4")
Max.travel of headstock	Φ250mm(10")
Swivel angle of headstock	360°
Max.travel of worktable bracket	Φ600mm(23-5/8")
Worktable size of avaliablity	380×300mm	730×210mm
Swivel angle of table horizontally	360°
Table leaned	±45°	/
Size of stand worktable of avaliability	417×416mm
Motor Power	0.75KW/1.1KW/1.5KW
speed of motor	1400rpm	1400rpm
Net weight/Gross weight	440kg/490kg	470kg/530kg
Packing size	1850×750×1000mm	1850×950×1000mm
Loading amount/20" container	18pcs	12pcs

Standard accessories:

Item	Qty
Drill chuck 1-13mm/B16	1pc
Draw bar	1pc
Allen wrench	1pc
Wedge	1pc
Tie rod	1pc

Optional accessories:
Halogen lamp
Coolant system
58pcs clamping kits
Face milling cutter
Milling chuck(8pcs set
Guarantee Terms:
Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.

---
