Hand Skiving Tool for Hydraulic Hose

Product Description

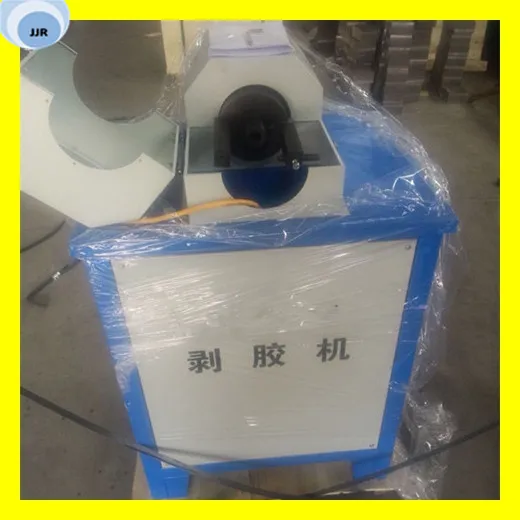

hand skiving tool for hydraulic hose
Main function of the skiving machine is to peel the exterior rubber of the rubber hose and contain steel wires, so as to connect ferrule. The machine is convenient and high efficiency.

Operation instruction

Insert the hose into the hole of skiving machine, push the hose forward step by step. The axis is stationary, motor drives the knives pole rotating. When the hose move forward, the exterior rubber is peeled by the knives. Pull the hose out after the work finish.

Before power on the skiving machine, please put the peeling axis into the fitting axis collar and fasten it firmly. Then fix the knives on the knife pole, and adjust knives to a normal position. Warning, check the screws and fitting and keep them in good condition status. After all these works are confirmed, start the peeling machine, then try to skive one hose. If the rubber could not
be skived completely, adjust the hand of knives to the center, so as to the knives could skive more deep. If the hose is spiral type steel wires hose, start the switch according to the direction of steel wires. The turning direction of the knives are accord with the turning direction of the switch.

Skiving range	6-51mm
Amount of dies	10 sets
Mold number	6,8,10,13,16,19,25,32,38,51
Operation mode	Manual
power	0.75/1.5(Optional)
Voltage	220V/380V(Optional)
Efficiency	1500 pieces/hour
Dimensions of product	620*470*1050mm
Dimensions of Package	700*520*1160mm
Weight	65KG

If you are interested in any of our products,please don't hesitate to contact with us.

---
