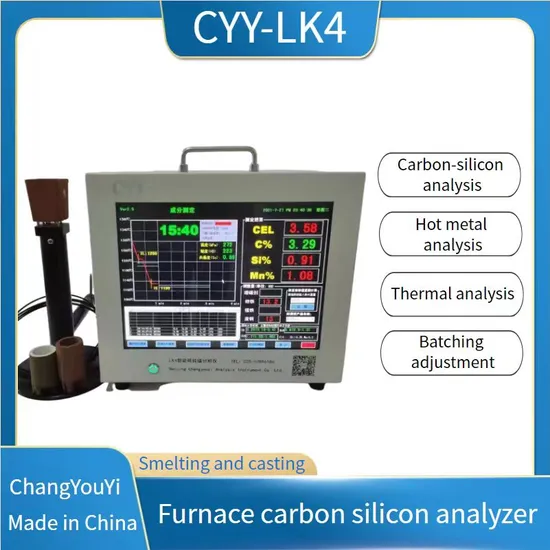

Carbon Silicon Analyzer High Temperature Liquid Iron Carbon Silicon Element Analysis

Product Description

Product Description Abstract:
The fourth generation of carbon silicon manganese analyzer in front of furnace with super function is newly launched (There are four major items: analysis of carbon, silicon and manganese in hot metal before furnace, automatic batching of hot metal material adjustment, analysis of spheroidization rate and spheroidization grade, and measurement of tensile strength and hardness)

Detailed Photos

Serial number	Product name	Unit	Quantity	Remarks
1	Carbon, silicon and manganese analyzer in front of the furnace	set	1	main engine for carbon, silicon and manganese analysis
2	Sample cup holder and connecting line	set	1	The connecting line is about 4 meters long
3	Mouse, keyboard, USB flash drive	set	1	The instrument has a USB interface to support automatic data saving and replication
4	Fixed carbon cup	set	1	square cup or round cup is optional
5	High temperature hot metal special sampling spoon	set	1	The ceramic fiber material can be reused
6	High temperature hot metal special slag removal spoon	set	1	The ceramic fiber material can be reused
7	Instruction book and Certificate of conformity	set	1	Paper or electronic operating manual

shipping list

Product Parameters
Installation Instructions Installation and use method
1. Use a 220v power supply with a grounded triangular plug socket, and confirm that the power socket is correctly connected and well grounded!
2. Avoid installing the instrument in an environment with a strong magnetic field or electric field.
3. A series of data such as the carbon, silicon and manganese content of the molten iron can be measured by the furnace worker by the way, by pouring a small scoop of molten iron into the pouring cup.
Operation interface, functional features


1. Power on then turn on the power and press the power button once;
2. After startup, the system will automatically enter the interface of composition determination

Interface description:

The sample cup is installed on the supporting bracket of the instrument. The instrument displays the current indoor temperature. The furnace operator only needs to ladle a ladle of hot metal (about 1300 ºC is recommended) into the sample cup. The instrument starts automatic analysis, dynamically displays the analysis process curve in real time, and automatically saves the analysis results. According to the content of the results, it automatically calculates the amount of carburizer, ferrosilicon and scrap that need to be added.
Test interface of carbon, silicon and manganese in front of furnace----Dynamic display of measurement process----Automatic calculation of batching adjustment

Click----test item selection----conduct tensile strength and hardness test

Click----test item selection----carry out spheroidization rate strengthening level test

Company Profile ChangYouYi experimental analysis instrument is made in China
Nanjing Changyouyi Analytical Instrument Co., Ltd. is a famous research and development manufacturer of analytical instruments, a contract and trustworthy enterprise. The company integrates R&D, production, sales, training, maintenance, and technical consultation, and has gathered a group of high-tech senior professionals who have been engaged in analytical instruments for a long time. Incorporating domestic and foreign microcomputer and sensor technology, infrared technology and optics, machinery, inspection and other technologies, starting from the actual needs of customers, research and development of a series of high-speed analysis instruments and supporting testing equipment, such as: carbon silicon analyzer in front of furnace , Melting thermometer in front of furnace, infrared carbon and sulfur analyzer, multi-element analyzer, spectrum analyzer, metallographic analyzer, five element analyzer, copper alloy & aluminum alloy analyzer, ore analyzer,Portable hardness tester, bench hardness tester, ultrasonic flaw detector, universal experimental tension machine, coating thickness tester, high-precision electronic balance and other laboratory testing equipment.
Instrument design and application industry:
The design of the instrument is novel and reasonable, and the technical level is advanced. It is an ideal and widely used laboratory, analysis and testing equipment. It is suitable for industrial and mining enterprises such as steel rolling, metallurgy, casting, machinery, railways, quality and technical supervision bureaus, construction quality inspection institutes, colleges and universities, scientific research institutes.

Used to analyze metal elements (carbon, sulfur, silicon, manganese, phosphorus, copper, nickel, chromium, molybdenum, rare earth, magnesium, titanium, zinc, lead, aluminum, iron and other element content).
Used to analyze the carbon and silicon content of the molten iron in front of the furnace and measure the temperature of the molten iron in front of the furnace.
Used for physical analysis and testing of metal hardness, metallographic structure, tensile strength, etc.

---
