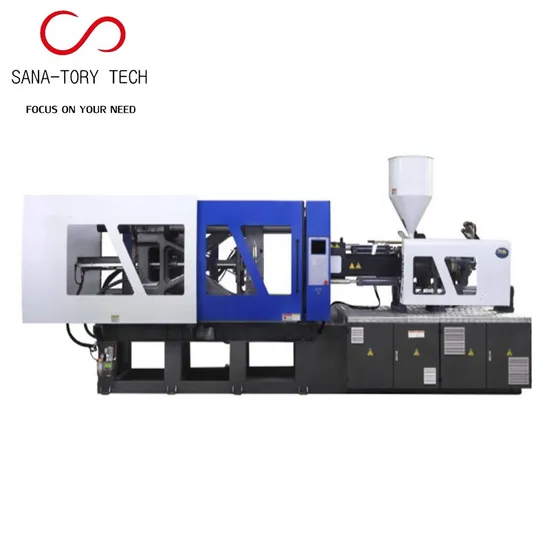

Hot Sale Injection Molding Machine for Plastic Cup Making

Product Description

Product Description
Product Parameters

ITEM		UNIT	DATA
Injection Unit	Screw Diameter	mm	45	50	55
	Screw L/D Ratio	L/D	23.1	20.6	18.7
	Injection Volume	cm3	374	461	558
	Shot Weight	g	340	420	508
	Injection Pressure	Mpa	210	170	141
Clamping Unit	Clamping Force	KN	2080
	Opening Stroke	mm	475
	Mould Thickness(Min-Max)	mm	200-520
	Space Between Tie-Bars	mm	515×515
	Ejector Force	KN	62
	Ejector Stroke	mm	165
General	Motor Power	KW	18.5
	Heater	KW	18.6
	Pump Pressure	Mpa	16
	Machine Dimension	m	5.7×1.4×2.3
	Machine Weight	T	6.6
	Mould Orientation Ring Diameter	mm	Φ160
	Nozzle Radius	mm	SR15

1, Save Power Consumption
Cooling phase, the motor does not need to work, power consumption is 0.
Compared with the traditional injection molding machine can save electricity <80%
2, Saving Water And Fuel
Compared with the traditional hydraulic power system of the hydraulic oil
consumption reduce
1/4 ~ 1/3, can achieve without cooling, thus greatly saving water.
3, Living longer 2~3 Double.
Machine Service Life Longer And Cleaner Working Environment
4, Improve the production efficiency
Quick Response And High Efficiency
Injection molding machine to achieve maximum output in 0.05 s
50 rpm can be up to 140 bar
High Repeat Precision, Save Raw Materials
Repeated injection precision can reach <=3%
Pressure Is Stable, Improve the Quality Of Molding
Pressure fluctuation quantity is less than + / - 0.5 bar
5, Stable At Low Speed
Closedloop control pressure and flow, at low pressure and low flow operation performance is particularly
outstanding, shoot rubber speed in less than 1 mm/SEC without crawling, pulse, high stability. System according to the actual product process requirements, set arbitrary pressure and flow, avoid excess heat generation, the oil temperature relative to the traditional injection molding machine is stable. In addition, the pressure
flow automatic compensation when motion, maintain the stability of the pressure and flow rate, high control accuracy and repeat precision.
6, Machine Service Life Longer And Cleaner Working Environment
Less Noise Emissions
Low Heat And Cooling Energy Demand Is Low,
More Suitable For Production Environment With Air Conditioning
Injection molding machine boot into the steady-state oil temperature rise of 8°C to 10°C
Application
