Automatic Circular Saw Machine for Steel Cutting Hydraulic Tilting Saw Cutting Machine

Product Description

Product Description
About CNC Automatic High-Speed Circular Saw Machine:1. Man-Machine Interface System
The easy-to-operate intelligent automated servo system with user-friendly touch screen and PLC control system ensures the efficiency and reliability of program operation.2. One-Piece Machine Foundation
The machine foundation uses high strength casting ensures stable machine performance, high cutting efficiency,and precision. Foundation is equipped with a circulating water cooling tank, which can satisfy the needs of using water-based coolant fluid when cutting tough alloy steel materials.3. New Gearbox Structure
The innovative designed gearbox structure and configuration apply to a wide range of cutting materials.4. Remnant Management Device (Third vise)
The unique short remnant clamping structure(P series)changed from a single cylinder to double cylinder separate actions with a vertical clamping device, increase the devise stability and reliability, blade lifetime, yield rate, and saves costs.5. Innovative Automatic Feeding Device
The material feed utilizes a servo-controlled motor with ball screw and linear guiding. Specially designed structure of feed clamp yaw effectively increases the precision and reliability.6. Spray-Mist Lubricant Cooling System
The advanced MQL circular saw blade spray-mist lubricant technology can increase blade service life.

Standard		Optional
1	One set of two-axis electrical system	1	Oil mist collector
2	Hydraulic system	2	Extended feed loader
3	Automatic spray-mist lubrication system	3	Power-driven wire brush
4	Automatic material feed loader	4	Cooling water pump
5	Spiral type chip conveyor	5	Automatic chain type chip conveyor
6	Wire brush	6	Third Vise
7	One air spray gun	7	Extended carrying device for cut-off workpiece
8	Circular saw blade
9	One set of tool kits

Product Parameters

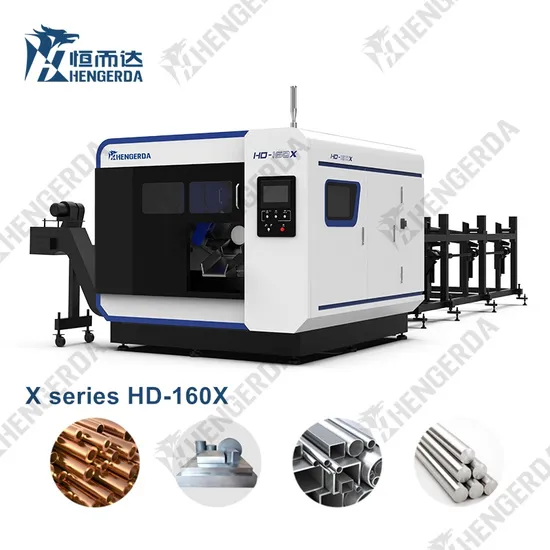

X SERIES HD-160X CIRCULAR SAW MACHINE TECHNICAL DATA
Specifications		HD-160X 2-Axis
CUTTING CAPACITY	Round bar (mm)	40-160
	Square bar (mm)	40-110
	Trimming length (mm)	10-100
	Single feed length (mm)	10-800
	Remnant length (mm)	80
	Perpendicularity tolerance (mm)	±0.05/100
SAW BLADE	Dimensions (mm)	Φ460 x Φ50 x T2.7 / t2.25
	Pin hole (mm)	Φ90/4/Φ14
	Number of teeth (Z)	40, 54, 60, 72, 80, 100, 120
PARAMETERS	Working voltage (V)	380
	Total power (KW)	31.5
	Machine weight estimated (loader included) (KG)	6000
	Machine dimensions estimated (mm)	L 2500 x W 2200 x H 1900
	Machine dimensions estimated (loader included) (mm)	L 7750 x W 2200 x H 1900
LOADER	Number of pieces (P)	Φ160 x 6 m x 6
	Length (m)	3-6 m
* Please note: all product technical information, parameters, specifications, dimensions, and designs shown in this catalog are subject to change without prior notice. For more information, please contact Hengerda.

Detailed Photos
Company Profile
Cutting Applications
Packaging & Shipping
Certifications

---
