| Type | item | Technical parameters |

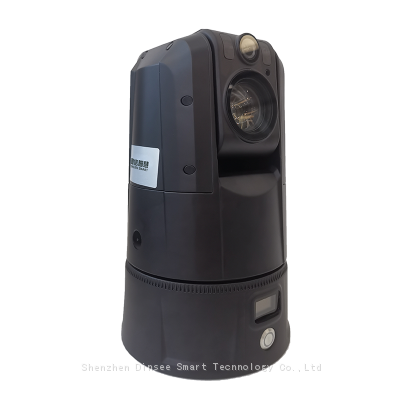

| Bracket mobile video surveillance device X5 | Positioning technology | Beidou+GPS+GLONASS+Galileo |
| Miniaturized omnidirectional spiral antenna |
| Time to first fix (typical) | 30s |
| AGNSS positioning time | 5s |
| Data update rate | 1-10Hz |
| Single point positioning | 3 meters |
| SBAS positioning | 1 meter |
| Differential positioning | 2cm+1ppm |
| System configuration | Operation system | Android8.1 |
| Processor | 8-core 2.0 GHz high-speed processor |
| Memory space | 3GB/6GB |
| Data storage | 32/64GB |
| Camera | 13 million pixels, autofocus |
| Sensor | Gravity sensor, gyroscope, compass, barometer |
| Data communication | Telecom Mode | 4G |
| WiFi | 802.11 a/b/g/n/ac (wave2) |
| Bluetooth | BlueTooth 4.1, V2.X compatible, BLE support |
| USB | USB2.0, Type-C interface, with OTG function |
| Power characteristics | Battery capacity | 3.85V,4000mAh |
| Charging mode | USB fast charging for 2.5 hours, seat charging for 4 hours |
| Working Time | (High precision positioning) 10 hours |
| Industry expansion | Encryption chips | Support |
| Lighting | Support |
| Physical characteristics | Size (L*W*H) | Battery end:83*60*26mm |
| Host:100*80*40mm |
| Weight | 200g |
| Three-proof level | IP65, resistant to 1.8 meters free fall |
| Operating temperature | -30°C~+70°C |
| Storage temperature | -40°C~+80°C |
|
|
|
| Functional features |
|
|
| 1,Global and detailed monitoring of the target area |
| 2. Support one-key focus on 3D ball control |
| 3. Binocular collaboration can monitor to personnel and vehicle tracking |
| 4. Support face, safety helmet, mask, tooling, engineering vehicle identification and capture |
| 5. Support Beidou, GPS, mixed positioning, it can accurately locate the specific location of the work site |
| 6. With telescopic tripod, it can be directly attached to the vehicle, and the equipment can be easily removed when the task is over; |
| 7. The bottom is equipped with strong suction magnet, which is convenient to install. |
