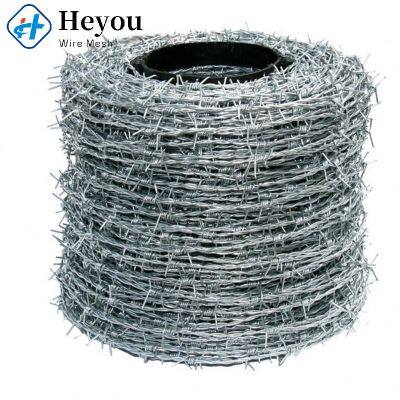

Barbed wire
Anping Heyou Wire Mesh Products Co.Ltd produce Galvanized barbed wire, PVC Coated Barbed Wire in IOWA type, with 2 strands, 4 points. Barbs' distance 3-6 inches ( Tolerance + 1/2" ). Barbed Iron Wireis suitable for industry, agriculture, animal husbandry, dwelling house, plantation or fencing.
Patterns Available for Galvanized Barbed Wire:
Single Twisted Barbed Wire
Double Twisted Barbed Wire
Traditional Twisted Barbed Wire
Features of : Galvanized Barbed wire offers a great protection against corrosion and oxidation caused by the atmosphere. Its high resistance allows greater spacing between the fencing posts.
Packing of : In coils. 5-45kg/coil, 100-400m/coil.
Material of : high quality low carbon steel wire (galvanized, coated, spray) PVC wire; a blue, green, yellow and other colors.
Weaving and characteristics of : from dedicated machines swirling formed , which is characterized assassination line evenly, beautiful and durable, corrosion-resistant features, construction is convenient. Uses: Used for grass boundary, railway, highway isolation protection networks can be used in conjunction with the fence. Can also be used alone. features :Corrosion and oxidation resistance Wire Dia:1,40mm to 2,60mm for line wires 1,40mm to 2,50mm for barbs
| Galvanized barbed wire---IOWA type |
Gauge of
Strand and Barb in BWG | Approximate Length per Kilo in Meter |
| Barbs Spacing 3" | Barbs Spacing 4" | Barbs Spacing 5" | Barbs Spacing 6" |
| 12x12 | 6.0617 | 6.7590 | 7.2700 | 7.6376 |
| 12x14 | 7.3335 | 7.9051 | 8.3015 | 8.5741 |
| 12-1/2x12-1/2 | 6.9223 | 7.7190 | 8.3022 | 8.7221 |
| 12-1/2x14 | 8.1096 | 8.814 | 9.2242 | 9.5620 |
| 13x13 | 7.9808 | 8.899 | 9.5721 | 10.0553 |
| 13x14 | 8.8448 | 9.6899 | 10.2923 | 10.7146 |
| 13-1/2x14 | 9.6079 | 10.6134 | 11.4705 | 11.8553 |
| 14x14 | 10.4569 | 11.6590 | 12.5423 | 13.1752 |
| 14-1/2x14-1/2 | 11.9875 | 13.3671 | 14.3781 | 15.1034 |
| 15x15 | 13.8927 | 15.4942 | 16.6666 | 17.5070 |
| 15-1/2x15-1/2 | 15.3491 | 17.1144 | 18.4060 | 19.3386 |
| Barbed Wire Specifications |
| Type | Wire Gauge (SWG) | Barb Distance (cm) | Barb Length (cm) |
| Electro Galvanized Barbed Wire; Hot-dip zinc plating barbed wire | 10# x 12# | 7.5-15 | 1.5-3 |
| 12# x 12# |
| 12# x 14# |
| 14# x 14# |
| 14# x 16# |
| 16# x 16# |
| 16# x 18# |
| PVC coated barbed wire; PE barbed wire | before coating | after coating | 7.5-15 | 1.5-3 |
| 1.0mm-3.5mm | 1.4mm-4.0mm |
| BWG11#-20# | BWG8#-17# |
| SWG11#-20# | SWG8#-17# |
| Note: PVC PE coating thickness: 0.4mm-0.6mm; different colors or length are available at customers request. |
|
|
| Item/Products name | traditional twisted or Double twisted barbed wire | Single barbed wire |
| wire diameter | 2.5*2.5mm/2.5*2.0mm/2.0*2.0mm/1.6mm*1.6mm | 1.6mm*1.6mm |
| zinc coated | 8-270g/sqm | 40-270g/sqm |
| Tensil stength | 350-550N | 1100-1700N |
| barbed distance | 4"-6" | 4"-6" |
| barb length | 1.5-3cm | 1.5-3cm |
| Stand No. | 2 | 1 |
1.high quality and resonable price
2.material:iron wire
3.weaving and characteristic:twist and weaving,firm and beautiful
4.application:used in garden or protecting the grass boundary
PVC coated barbed wire fence
wire gauge:
(1) before coating :1.0mm-3.5mm BWG11#-20# SWG11#-20#
(2) after coating : 1.4mm-4.0mm BWG8#-17# SWG8#-17#
barb space:7.5cm-15cm
barb length:1.5cm -3cm
>>
