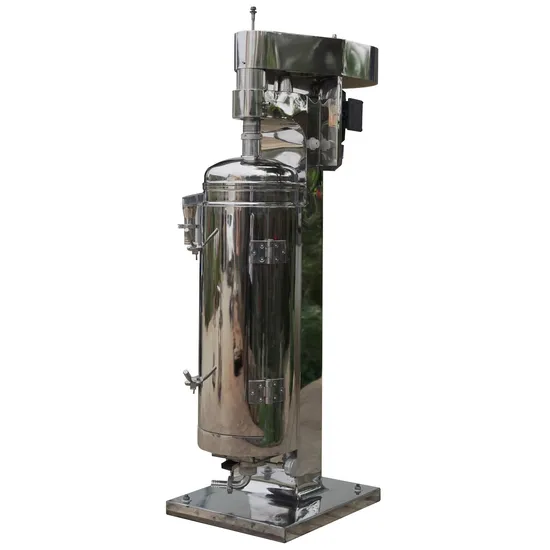

Bio-Cell / Cell Separation Application for Shenzhou High Separating Factor Tubular Bowl Centrifuge

Product Description

Product Description
Bio-Cell / Cell Separation application for Shenzhou High separating factor Tubular Bowl Centrifuge
The tubular centrifuges belong to the high speed sedimentation centrifuges and, with respect to the inflow and outflow of the liquids; and with respect to the discharge of the solid material spun off in the drum, however operate discontinuously. That is to say the solid material must be removed manually.
The tubular centrifuge has a cylindrical tubelike drum, usually with a relatively small diameter. Due to the high-strength material of the centrifuge drum and because of the small diameter of the drum, tubular centrifuges can achieve very high rotational speeds.
The tubular centrifuge's drum can be designed for purifying a suspension (solid-fluid separation) of for separating a liquid mixture (fluid-fluid separation). Hereby the fluids may not be soluble in each other and must have different densities.
The liquid (suspension or liquid mixture) is, as a rule, fed in at the bottom, rises in the drum and leaves the upper end of the drum purified (for a suspension) or separated (in the case of a liquid mixture.
The centrifugal effect (depending on the diameter of the drum) can be up to 20,000g.
The possible areas of use are widespread. Tubular centrifuges are used, for example, in the paint and colour industry, in the cooking oil, grease and soap industry, in the chemical pharmaceutical industry, in the waxwear industry etc. A specially cooled version of the tubular centrifuge can also be used for the fractionation of human blood.

High Speed Tubular Centrifuge, also called Tubular Bowl Separator, is a kind of fine separation equipment suitable for suspensions with thin concentration, fine particles, and small density difference solid-liquid separation, or liquid-liquid-solid separation. It is indispensable equipment for pharmaceutical, food, chemical, biological product, fermentation broth, beverages, blood products and other industries. High Speed Tubular Centrifuge working principle is that materials with different specific gravity are subject to different centrifugal forces when rotating at high speed, so as to achieve the purpose of separation.
Bio-Cell / Cell Separation application for Shenzhou High separating factor Tubular Bowl Centrifuge
Tubular Centrifuge separator features:
The machine are designed & fabricated as per GMP standard. Bearing assembly provided with self lubrication and Greace packed. Open door design facilitates easy bowl removal & installation. Sanitory design can be provided with all contact parts in stainless steel electro polish to highest finish of Ra 0.4 micron. Jacket or cooling coil can be provided to maintain the temperature Highest recovery of bio cells Minimum noise level Variable speed drive can be provided Complete 'PLC' panel can be provided with interlocks Trial facilities are available at our factory.
Product Paramenters

TYPE		GQ75		GF75	GQ105	GF105	GF150	GQ150	GF125	GQ125
	Inner diameter of bowl(mm)_		75	75	105	105	142	142	125	125
	Efficient height of bowl		450	450	730	730	730	730	730	730
	Available volume of bowl		2.67	2.67	6	6	10	10	8	8
	The highest speed of bowl(R/min)		21000	21000	19000	19000	15000	15000	16000	16000
	The biggest separating factor		22500	22500	21000	21000	16400	16400	18000	18000
The diameter of charging nozzle		2,3,5		2,3,5	4,6,8,	4,6,8,	4,6,8,10	4,6,8,10	4,6,8,10	4,6,8,10
The pressure of charging inlet		>0.05MPa								>0.05MPa
Capacity		~400		~400	~1400	~1400	~2400	~2400	~2400	~2400
Motor		1.5		1.5	3.0	3.0	3.0	3.0	3.0	3.0
Dimenstion		600×800 ×1300		600×800 ×1300	600×800 ×1600	600×800 ×1600	800×800 ×1600	800×800 ×1600	800×800 ×1600	800×800 ×1600
Machine weight(Kg)		200		200	450	450	500	500	480	480

Tubular centrifuge separator Details Images MACHINE DRAWING 1. Motor 2. Bearing assembly 3. Spindle assembly 4. Machine body 5. Cover assemblies for liquid collection 6. Bowl assembly 7. Drag assembly BEARING ASSEMBLY 1.Coupling nut 2.Spindle 3.Bearing housing 4.Thrust collar 6.Lock nut 7.Bearing pulley 8.Bearing 6203 9.Inner Spacer 10.Outer Spacer 11.Bearing binding nut 12.Positioning pin 13.Spindle nut 14.Male clutch 15.Bearing housing 16.Female clutch 18.Buffer 19.Inner hexagon screw M8*25 20.Lock nut
Tool

Items	GF75	GF105	GF125	GF150	GQ75	GQ105	GQ125	GQ150
Diameter/mm	75	105	125	150	75	105	125	150
Height/mm	450	730	730	730	450	730	730	730
Volume/L	2.2	6	8	10	2.2	6	8	10
Rotation/min	19200	16300	15000	14000	19200	16300	15000	14000
Working Pressure	≥0.05MPa
Water Flow/L	500	1200	2000	2500	600	1200	2000	3000
Gross Power	1.5	3	4	4	1.5	3	4	4
Dimension	760*450*1120	840*500*1600	900*550*1600	900*550*1600	760*450*1120	840*500*1600	900*550*1600	900*550*1600
Weight	300	570	610	665	300	570	610	665

Tubular Centrifuge separator Application
Tubular Separator is mainly used for separating all kinds of suspension which is difficult to be separated, especially suitable for separation of solid-liquid suspension with light concentration, heavy viscosity, fine particles and very small differential gravity of the two phases. such as clarification of herbs plants extracts, various medicine liquor, liquid medicine, oral liquid, the extraction of paint, dye, as well as various proteins, alga, fruit gels, and purification of rubber solution, coal tar, graphite, saponin, pectin, sirup, vaccine mycelia and all kinds of glucose; refining resin, and latex solution, enzyme (SOD) of oxide, various kinds of albumens, the glucoside of the soap, etc.
Biocell separation - Pharma E-coli Plasma/Blood fractionation Biofertilizer - cell separation Protein precipitate Yeast cell debris
