Product Details
Product Description
Product Description
Feature

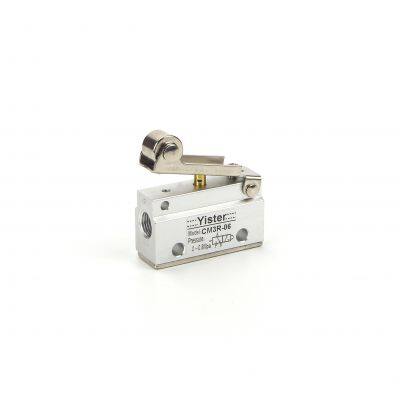

Airtac replacement CM3 manual mechanical valves are 3 way valves and are available with M5 ports 1/8 ports, or 1/4 ports.
A variety of manual and mechanical operators allow the CM3 series to be used as limit valves or to manually control circuit operation.
The non-threaded exhaust port allows the CM3 valves to be very compact in size. In addition to the wide range of manual actuators including large shrouded palm buttons.
Product description：
Item No.
| CM3□-05
| CM3□-06
| CM3□-08
|
Fluid
| Air
|
Operation type
| External control
|
Pressure range
| 0-1.0 Mpa
|
Proof pressure
| 1.5Mpa
|
Ambient and fluid temperature
| -20 to 70℃
|
Valve type
| 3 port 2 position
|
Port size
| M5*0.8
| 1/8”
| 1/4”
|
Orifize size
| 2.0mm2
| 2.5mm2
| 15.0mm2
|
Cv value
| 0.11
| 0.14
| 0.84
|
Company information：
Yister Electric Co., Ltd. specialized in manufacturing pneumatic products. The company adopts international advanced production technology and scientific management methods, and all products realize computer-aided design and production management. The key components are imported from Europe and the United States. The main performance indicators of the products have reached the international advanced level.
The products produced by our company are of high quality, reliable performance, good versatility, wide variety and complete specifications. The main products are multiple series of pneumatic actuators, control components, auxiliary components, pneumatic machinery and pneumatic complete systems.
FAQ
1.Q: what is your products?
A:Yister Pneumatic produce Pneumatic solenoid valve, Mechanical valve, foot valve, Air control valve, hand valve, cylinder, PU Tube ,pneumatic fittings,etc.
2.Q: how can we guarantee quality?
A:Warrenty is one-year. 100% Inspection before shipment;
3.Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is about 30 days if the goods are not in stock, it is according to quantity .
4.Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
>>
