Product Description
Product Description

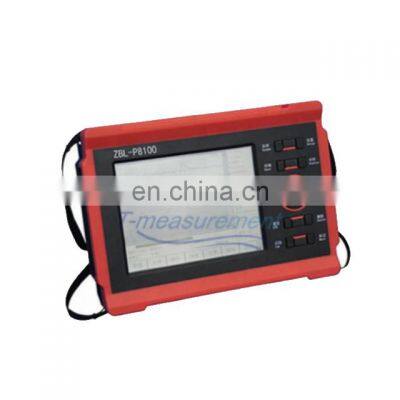

Product DescriptionZBL-P8100 Pile Dynamic DetectorP8100 Foundation Pile Dynamic Detector is used to assess the integrality of concrete pile and identify the extent and location of the pile detect by using the reflected wave method.It can be used for testing perfusion pile and hammer pile and also for testing the exposed top surface of constructions such pillars.The ZBL-P8100 is pile integrity tester provided with 2 channels of data acquisition and can acquire data from an accelerometer or an instrumented hammer or from two accelerometers.1.High fidelity system design, to ensure that the original waveform distortion2.True 24 bi A/D data acquisition, the rest waveform is more real, to avoid the noise and signal distortion caused by large floating point amplification3.1MHz high speed data acquisition, the minimum sampling time resolution of 1μs,can provide more useful information, more conducive to the discovery of shallow defects; 4.Double channel design, allows use the special detection method5. A new processing method of wavelet analysis, can be more accurate in complex situations of pile integrity judgement6. Double injection molding, beautiful appearance, small volume, light weight;7. Waterproof casing, anti shock design, adapt to the harsh environment8.Semi transparent, high brightness, TFT color LCD screen, more clearly in the sunDetailed ImagesModelZBL-P8100Control ModeA8 Embedded PlatformScreen5.7inch, High Brightness, TFT color LCD screenData Storage≥4GBOperation ModeKey + touch screenSentinel Magnify(time)1,2,5,10,20,50,100 adjustableA/D resoulution(bit)A/D resoulution(bit)Sampling time intervals(μS)1~64000 adjustableMax length of sampling4096TriggerSignal triggerNoise voltage of the system(mV)≤1Dynarnic Range(dB)≥184Amplifier frequency range(Hz)10~10KTime value error4096Time resolving power(us)≤10%Gain Error(dB)≤1% Work time(h)>8Number of channels2Interference between the channels≤1%Transducer/Probe Sensitivity(Acceleration mode) (mv/g)≥100Frequency range of Probe(Acceleration probe) (Hz)0.5~9000PortDouble USBWi-FiYesPower supplyInternal:Built-in BatteryExternal: 220VAC/DCOperational EnvironmentTemperature(℃): -10~+50Humidity (RH) :<90%Related ProductsZBL-R630A Rebar scanner ZBL-R630A is used to test the location of rebar in concrete, the thickness of the protective layer, and the diameter, orientationand distribution of rebar by using an electromagnetic induction method. It also can be used to test the distribution of magneticand conductor such as cables and metal pipes in non-magnetic medium and non-conducting mediumZBL-R800 Multifuncational Rebar detector ZBL-R800 is a multi-functional integrated rebar detector which can be used for testing the thickness of protective layers, measuring the diameter, location, and distribution of rebar as well as for detecting the corrosion content of a rebar.HT-225W+ integrity voice report digital concrete rebound hammerHT-225W+ digital test hammer with digital display and voice function, for the quick and easy determinationof the strength of concrete, and hardness of construction materials. Digital and voice functions allow fasterand greater number of test, leading to better quality tests.Contact UsTrade terms1. 18 Month's Warranty.2. Delivery time:3-7 working days after payments received3. MOQ:1 set.4. Service express company:TNT/DHL/FedEX.5. We accept T/T, Western Union, PayPal & Secure Payment.NO.5 Shanshui Yuan, High-tech Industrial Zone Dalian, China 116033E-mail:info at TEL:86-411-39685079Whatsapp:+8615998537470Skype:tmeasurement02web:/
>>
