US$1,500.00-2,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Certification
CE, ISO 9001
Function
Drilling,Milling,Tapping
Vertical Milling Capacity
32mm
Face Milling Capacity
120mm
Transport Package
Plywood Case
Specification
1100x1100x1950mm
Production Capacity
1000 PCS/Month
Product Description
Specification
| | ZX50CF |
| Spindle taper | ISO40 |
| Drilling capacity | 50mm |
| Vertical milling capacity | 32mm |
| Face milling capacity | 120mm |
| Boring capacity | 120mm |
| Max.taping dia. | M16 |
| Spindle travel | 120mm |
| Table size | 800 x240 |
| Table travel(horizontal/cross/vertical) | 400x230x450mm |
| Head movement(left/right) | 90degrees |
| Spindle nose to worktable | 90-490mm |
| Spindle center to column | 320mm |
| Spindle speeds | (8)115-1750r/min |
| Max weight of workpiece | 200kg |
| T-slot number /width/distance | 5/14mm/35mm |
| Horse power for main motor | 1.5/2.2 KW |
| Overall dimension | 1100x1100x1950mm |
| N.W./G.W. | 550/650kg |
Standard accessories :
| Item | Name | Q'TY |
| 1 | Drilling and milling machine | 1 |
| 2 | Drill chuck | 1 |
| 3 | Milling chuck | 1(8 pcs) |
| 4 | Reduction sleeve | 2 |
| 5 | Machine vise* | 1 |
| 6 | Wrench | 1 |
| 7 | Inner hexagonal spanner | 1 |
| 8 | Cam lock | 1 |
| 9 | Wedge shifter | 1 |
| 10 | Spindle arbor | 1 |
| 11 | Boring bolt | 1 |
| 12 | Operation manual | 1 |
Optional accessories :
DRO ,X axis Auto feeding ,Y axis Auto feeding ,Coolant system

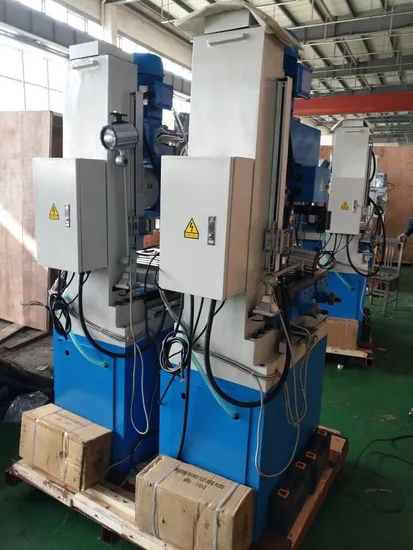

Machine Photo
Manufacturing Ability
We in Fairs
OEM APPROVED * LOGO OEM accept.
* Packing design OEM accept
* Even machine design OEM accept.
>>
