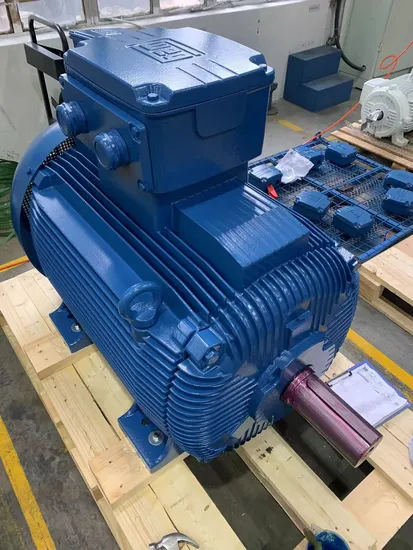

Semc Sell NEMA Tefc Motor

Product Description

Technical Data Sheet
Customer: Project:
No.	Definition		Data/unit	Note
1.	Item		NEMA TEFC Motor
2.	Type		H3N 447TS- 2 T2Z8
3.	Mounting		B35
4.	Power		200 HP	NEMA MC 1-2014
5.	Service factor		1.0
6.	Power factor		0.91 cos (p
7.	Duty		SI
8.	Voltage		460 V	(+/- 10%)
9.	Frequency		60 Hz
10.	Rated speed		3585 r.p.m.
11.	Rel. Torque		399.58 Nm.
12.	Current		216 A
13.	NEMA Design		B
14.	NEMA Code		J
15.	Locked rotor current		1450 A
16.	Locked rated torque		150 %
17.	Maximum rated torque		230 %
18.	Efficiency - 100%		95.4 %
19.	Efficiency - 75%		95.4 %
20.	Isolation Class		F
21.	Temperature rise Class		B
22.	Ambient Temperature		-15...+50 ,C
23.	Altitude		1000 m.a.s.l.
24.	Protection		IP55
25.	Cooling		Fan Cooled - IC411
26.	Bearings		6316-C3 / 6316-C3	SKF bearings
27.	Housing		Cast iron
28.	Terminal Box		LHS viewed from DE side
29.	Sound pressure level Lpa / Lwa		81 / 93 dB	+3 dB
30.	Moment of inertia J=1 /4 GD		3.00 kg m2
31.	Direction of rotation		CW // CCW
32.	Weight		1003 kg
33.	Origin		Switzerland
34.	Additional Information		3 PTC thermistor
ExMotors
35.	EEx type of protection
36.	Certificate No.
37.	Te-Time
Options / Definition

NO.	Electric Furnace Type	Input power (KW)	input voltage (V)	Input current (A)	Rated power (KW)	DC current (A)	DC voltage (V)	Melting rate (T/H)	working frequency (Hz)	working voltage (V)	cooling water pressure(MPa)		Rated capacity (T)	Power consumption (KWH/T)
											Power Supply	Furnace body
1	GW-0.25-160/1JJ	180	380 (6 Pulse)	256	160	320	500	0.24	1000	750	0.1~0.15	0.25~0.3	0.25	790
2	GW-0.5-250/1JJ	280	380 (6 Pulse)	400	250	500	500	0.4	1000	1500	0.1~0.15	0.25~0.3	0.5	770
3	GW-0.5-250/1J	280	380 (6 Pulse)	400	250	500	500	0.4	1000	1500	0.1~0.15	0.25~0.3	0.5	770
4	GW-0.75-400/1JJ	400	380 (6 Pulse)	650	400	800	500	0.6	1000	1500	0.1~0.15	0.25~0.3	0.75	770
5	GW-0.75-400/1J	400	380 (6 Pulse)	650	400	800	500	0.6	1000	1500	0.1~0.15	0.25~0.3	0.75	770
6	GW-1-500/1JJ	550	380 (6 Pulse)	800	500	1000	500	0.8	1000	1500	0.1~0.15	0.25~0.3	1	750
7	GW-1-750/1JJ	800	380/690 (6 Pulse)	1200/ 700	750	1500/ 850	500/ 880	0.9	1000/ 500	1500/ 2600	0.1~0.15	0.25~0.3	1	720/660
8	GW-1-750/1J	800	380/690 (6 Pulse)	1200/ 700	750	1500/ 850	500/ 880	0.9	1000/ 500	1500/ 2600	0.1~0.15	0.25~0.3	1	720/660
9	GW-1.5-1000/0.5JJ	1100	690 (6 Pulse)	912	1000	1140	880	1.2	500	2600	0.1~0.15	0.25~0.3	1.5	700
10	GW-1.5-1000/0.5J	1100	690 (6 Pulse)	912	1000	1140	880	1.2	500	2600	0.1~0.15	0.25~0.3	1.5	700
11	GW-2-1500/0.5JJ	1650	690 (6 Pulse)	1360	1500	1700	880	1.7	500	2600	0.1~0.15	0.25~0.3	2	675
12	GW-2-1500/0.5J	1650	690 (6 Pulse)	1360	1500	1700	880	1.7	500	2600	0.1~0.15	0.25~0.3	2	675
13	GW-2-2000/0.5JJ	2200	690 (6 Pulse)	1400	2000	2275	880	1.9	500	2600	0.1~0.15	0.25~0.3	2	650
14	GW-3-2500/0.5JJ	2750	690/950 (6 Pulse)	2275/ 1700	2500	2840/ 2080	880/ 1250	2.56	500	2600/3200	0.1~0.15	0.25~0.3	3	610/560
15	GW-3-2500/0.5J	2750	690/950 (6 Pulse)	2275/ 1700	2500	2840/ 2080	880/ 1250	2.56	500	2600/3200	0.1~0.15	0.25~0.3	3	610/560
16	GW-4-3000/0.5J	3300	690/950 (6 Pulse)	2730/ 2040	3000	3410/ 2500	880/ 1250	3.2	500	2600/3200	0.1~0.15	0.25~0.3	4	610/560
17	GW-5-4000/0.5J	4400	950 (6 Pulse)	2300	4000	3330	1250	5	500	3400	0.1~0.15	0.25~0.3	5	600/550
18	GW-6-4000/0.5J	4400	950 (12 Pulse)	2300	4000	3330	1250	5	500	3400	0.1~0.15	0.25~0.3	6	600/550
19	GW-8-5000/0.5J	5000	950 (12 Pulse)	3400	5000	4200	1250	7~8	500	3400	0.1~0.15	0.25~0.3	8	600/550
20	GW-10-6000/0.5J	6300	950 (12 Pulse)	3750	6000	4600	1250	8.5~9	500	3400	0.1~0.15	0.25~0.3	10	600/550
21	GW-12-8000/0.25J	8000	950 (12 Pulse)	4900	8000	6000	1250	9~10.5	250	3400	0.1~0.15	0.25~0.3	12	600-550
22	GW-15-8000/0.25J	8000	950 (12 Pulse)	4900	8000	6000	1250	9~10.5	250	3400	0.1~0.15	0.25~0.3	15	600-550
23	GW-15-10000/0.25J	10000	950 (24 Pulse)	6500	10000	8000	1250	13~15	250	3400	0.1~0.15	0.25~0.3	15	600-550
24	GW-18-12000/0.25J	12000	950 (24 Pulse)	8160	12000	10000	1200	15~17	250	3400	0.1~0.15	0.25~0.3	18	600-550
25	GW-20-12000/0.25J	12000	950 (24 Pulse)	8160	12000	10000	1200	17~19	250	3400	0.1~0.15	0.25~0.3	20	600-550
26	GW-25-14000/0.25J	14000	950 (24 Pulse)	9460	14000	11600	1200	19~21	150~200	3400	0.1~0.15	0.25~0.3	25	600-550
27	GW-30-16000/0.2J	16000	950 (24 Pulse)	10850	16000	13300	1200	21~23	150~200	3400	0.1~0.15	0.25~0.3	30	600-550
28	GW-40-20000/0.2J	20000	950 (24 Pulse)	13545	20000	16600	1200	25~27	150~200	3400	0.1~0.15	0.25~0.3	40	600-550
29	GW-50-22000/0.2J	22000	950 (24 Pulse)	14932	22000	18300	1200	25~28	150~200	3400	0.1~0.15	0.25~0.3	50	600-550

Note:
(1) GW - means medium frequency induction furnace, - 1 - means induction furnace capacity of 1 ton, - 500 - means furnace rated power of 500 KW, / 1 - means furnace operating frequency of 1000 Hz, / 0.5 - means melting furnace frequency of 500 Hz, - J - means hydraulic tilting furnace (furnace shell is steel shell), - JJ - means mechanical tilting furnace. (the shell of the furnace is aluminum alloy).
(2) The above quoted price is for routine configuration. Other configurations can be added, such as leak alarm, water temperature alarm, furnace switch, cover mechanism, lining ejector and transformer, cooling device (open and close cooling tower, closed cooling tower, plate heat exchanger)
3) If necessary, send technicians to carry out the commissioning: the domestic section is free; the overseas section travel expenses, accommodation and food are borne by the user and each person is subsidized 150 US dollars per day.
4) I quote EX-W at a price including simple packing, including shipping charges to Shanghai port area and all inland charges in China.
V) The above electric furnace voltage levels are 380V, 690V and 950/1000V, and the frequency is 50Hz. If the user equipment requirements are different from the above voltage levels and frequencies, each item needs to be increased by 15000USD.
