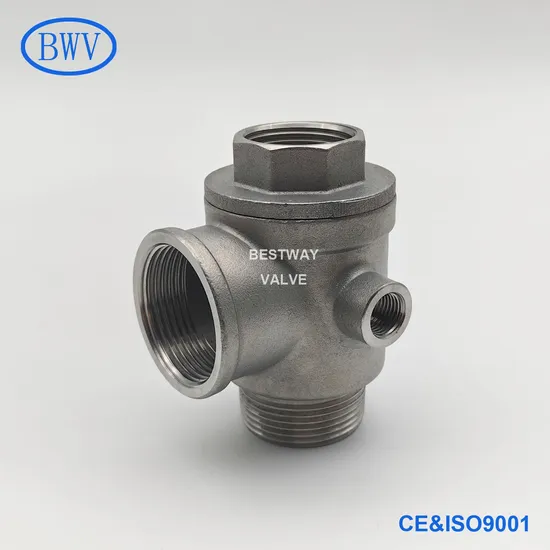

DN32 1-1/4" Stainless Steel 5-Way Spring Loaded Check Valves

Product Description

DN32 1-1/4" Stainless Steel 5-Way Spring Loaded Check Valves
Stainless steel 5-way sprIng non-return valve with 1x male thread (inlet), 1x female thread (pressure pipe, angled), 1x female thread 1" for the pressure vessel (on top) and 2x female thread 1/4" (pressure sensor and manometer). Specially made to combine with a frequency converter with separate pressure sensor.
A frequency converter with a separate pressure sensor works best in combination with a small pressure vessel. This non-return valve actually has all the connection options to realize such an arrangement simply and effectively.
Reverse Prevention: The check valve is designed for use in fluid systems to prevent reverse of liquids or pneumatic systems to prevent reverse of compressed air and can be used on variable frequency pumps.
Spring Mechanism: The spring mechanism of the check valve ensures that the valve opens and closes smoothly, with minimal pressure drop. This feature allows for a superior performance , guaranteeing accurate control and maximum efficiency.
Long Lasting Operation: The spring loaded check valve is made from excellent brass to ensure durability and long lasting reliable operation, making it the ideal material for this type of valve.
High Pressure: The check valve has a robust construction and can withstand pressures of up to 16 bar, with the water pressure remaining even and constant.
Ensuring Clean Water: The non return valve prevents unwanted backflow of liquid. With just a few turns, the valve is sealed with screws and guarantees an absolutely clean water system.
Descriptions:
1)Investment Casting Body
2)Spring Loaded type
3)Stainless Steel Disc
4)Soft Seat
5)Threads type: NPT,BSP,BSPP,BSPT,PT,DIN ect
6)Material: ASTM A351-CF8,CF8M,SS316,SS304
7)Size: 1"-2",DN25-DN50
8) Working pressure: PN16 max
9) Working Temperature:-20~ 100°C
10)Working Medium: Water

No.	Parts	Material
1	Body&Cap	CF8M/316	CF8/304
2	Disc	CF8M/316	CF8/304
3	Cap	CF8M/316	CF8/304
4	Spring	316	304
5	Seat	Silicon Rubber
6	Body Gasket	PTFE
