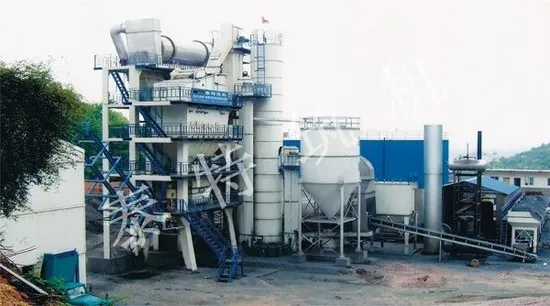

Rlb-4000 Hot Recycled Asphalt Mixing Equipment

Product Description

Product introduction: 1,Production capacity: 240-320t/h (under standard working conditions)

Drying drum(Table 1)

Drying cylinder discharge temperature	160ºC
Water content of cold sand and stone	≤3%	≤5%	≤7%
Production capacity (t/h)	320	280	240
Fuel consumption(kg/t)	6.0	6.5	7.5

Note:1,The ambient temperature is 20ºC
2,Standard atmosphere;
3,Residual water content≤0.5%;
4,The low calorific value of diesel oil is46055kJ/kg.
Mixing tank (Table 2)

Stirring cycle(S)	45	60
Productive capacity(t/h)	320	240

Note: The length of the stirring cycle is related to the following conditions:
1:Types of raw materials;
2: ratio of coarse and fine materials;
3: asphalt content;
4:Add cellulose or other additives;
5:Stirring temperature.
2. Total installed capacity: ~ 890kW
3. Measurement accuracy:
Sand and stone material is ±0.5%, mineral powder is ±0.3%, asphalt is ±0.3%. It meets the national standard JT/T270-2002 quality standard and can meet the quality requirements of constructing high-grade highways.
4, asphalt content deviation: asphalt content deviation ±0.3%.
5, finished material temperature:
The discharge temperature of the finished product can be set arbitrarily: automatic and manual control can be achieved. Automatic control error is not more than ±5ºC. Under normal circumstances, the temperature of the finished material is 140 ° C ~ 160 ° C, and it can reach 180 ° C or higher when special requirements are met.
6, finished material quality:
Uniform and consistent, no white material, coarse and fine material separation, agglomeration phenomenon, can meet the quality requirements of high-grade road surface.
7. Dust removal effect
The mixer adopts two dust removal mode, the first level mechanical cyclone dust removal, the second level atmospheric backwash bag dust removal, the final chimney dust emission is less than 100mg/Nm3, Ringermann blackness level, the control room environmental noise is less than 70dB (A), fully in line with national environmental protection requirements.
8. Control mode:
Microcomputer intelligent automatic control, automatic, semi-automatic, manual both. Dual microcomputer mutual hot standby, large screen color display, automatic compensation of flying material. With fault self-diagnosis, formula table storage, reading function, mixing data mass storage, query and print report function, multi-point industrial monitoring.
