Qingdao Hf Qt5-15 Holland Brick Machinery Hollow Block Making Machine Price

Product Description

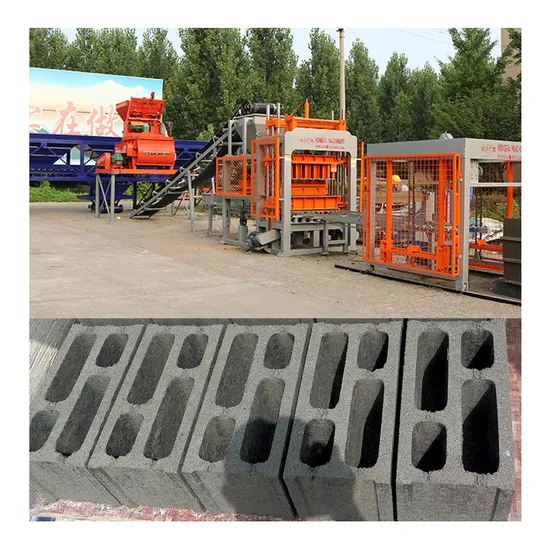

Hongfa QT5-15 kerb machine & hollow block making machine philippines The full line including cement silo, batching machine,mixer, QT5-15 hydraulic pressing brick machine , stacker machine.the silo stock the cement, by screw conveyor transfering cement into the mixer. the batching machine get a proper compounding ratio for raw material, finally pouring into the mixer hopper and put into the mixing cavity. with automatic water supplying, we will get the perfect concrete material for making block. the host machine with PLC controller, can feeding material, pressing, shaping by itself. after shaping, stacker machine will stack 4 layer for moving by forklift

1) The motor for the host machine is Germany SIEMENS brand or ABB brand
2) Control PLC: we select original Japan Mitsubishi PLCcombine with independently develop machine control program, assure stable and high efficiency working status3) The switch will use France Sc hneider brand and Japan Omron4) Mould: newest heat treatment device and carburizing treatment will assure longer mould life span and ensure the strength of mould reach to 54- 58 HRC so that the mould can be used more than 100 thousand times.5)Material and welding: all materials and spare parts selected according to international CE standard, Carbon dioxide protection welding will assure whole line stable running.
QT5-15 Block making machine adopts the leading technology for block machine in the world, Particular storage and discerption material system insure the feeding accuracy and avoiding the effect of exterior material. So the products have high density. Adopting synchronization vibration insures the products making average. The frequency can change according to different technics. Low frequency in feeding material , high frequency vibration makes the material to have a optimal vibration way. The computer is fault diagnosis system. Warming signal is propitious to eliminate the fault. Combine with long-distance controlling system, it can achieve scrutiny, controlling, diagnosis.
Our Advantages

Technical Parameter	Detailed Data
Overall Dimension	7310x2600x2890mm
Rated Pressure	16Mpa
Main Vibration Form	Platform Vibration
Virbration frequency	2800-4500r/min
Pallet Size	1100x5700mm
Mould cycle	15-20s
Exciying	60kn
Overall power	32kw
Weight	8000kg

PLD1200 batching machine:Model: PLD1200
Weigh bucket capacity:1200L
Productivity :56M3/H
Batching precision:±1%
Max weighing capacity:3000
Number of material matching:3
Work loading height:3000
Dimension:9000*2200*3500
JS750 mixer:
Charging capacity :1200L
Discharging capacity:750L
Production capacity:≥35 M3/H
Max Aggregate Diameter:≤40/60 MM
Mixing vane rotation speed:30.5r/min
Mixing vane quantity:2x7
Weight:4500 KGS
Dimension:5980*2300*6260mm
Stacker: Lifting motor:1.5KW Moving motor:1.5 KW Weight:1500 kgs Stacker layer:4 layer Diamension:2500x1800x2300mm Cycle:15-20 seconds Rail shape:triangle shape

Our company offers variety of products which can meet your multifarious demands. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.Our products:brick making machine,block making machine,brick machine,aac production line,block pallet,hollow brick machine,holland brick machine automatic block making machine
FAQ
1. where to find reliable and direct factory for block machine ?
---Shandong hongfa have more than 33 years rich experience in block machine manufacturing. welcome your visit.
2. Do you have ready machine in stock ?

--- we do have stock, but almost all our molds need customized according to local size requirements.
3. Do you have branch office in my country ?
--- until now we have distributor in Uz and Algeria etc. contact us if you need their contacts.
4. If my machine break down how to do ?
-- Contact Tina let us help to find the problem, and we can send spare parts to restart your machine.
5. I have no experience, how to install the block machine and how to change molds ?
--we have instruction books and video to teach you , if not workable, we will send engineers to your land for training.
6. HOW to pay ? is my money safe ?
---- yes dear your money is protected by the made-in-china platform. you can pay by TT BANK or LC at sight.

---
