UV/680 PVC Injection Molding Machine

US$1.00-2.00 1 Piece (MOQ)

Basic Info.

Model NO.
UV/680
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Certificate of Origin
1
Certificate of Fumigation
1
Packing List
1
Commercial Invoice
1
Easy Broken Parts
1
Transport Package
Wooden Pallet and Dust Cover
Trademark
K&E
Origin
China
HS Code
8477101090
Production Capacity
200/Y

Product Description

PVC IMM :
Cooling fan installed on barrel,Widened protective door.,Increased motor.

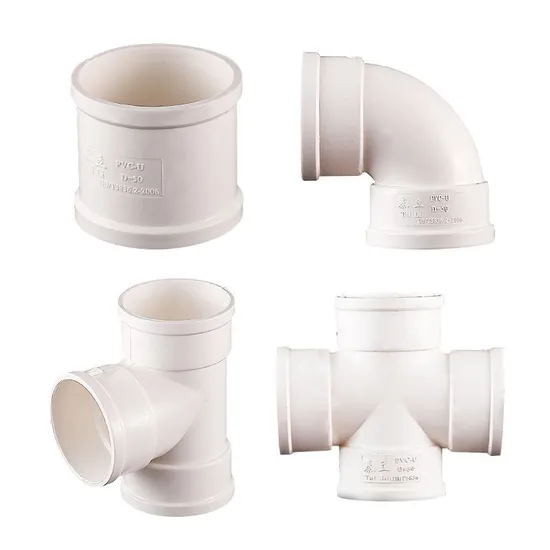

The main production of PVC material pipe fittings
Parameters:
PVC STYLE SPECIFICATION UV/680
SCREW TYPE A B C D
Injection Unit
Screw diameter mm 90 95 100 105
Screw L/D ratio L/D 23.2 22 20.9 19.9
Shot volume(theoretical) CM3 2926 3260 3612 3982
Injection weight(PVC) g 3728 4153 4602 5073
Injection rate g/s 811 903 1001 1103
Injection pressure MPA 177 159 143 130
Screw speed rpm 80
Clamping Unit
Clamping force KN 6800
Open stroke mm 900(920)
Space between tie-bars(W*H) mm 895*895
Max mould height mm 900
Min mould height mm 350
Ejector stroke mm 250
Ejector force KN 150
Others
Max pump pressure MPA 16
Pump Motor power KW 66
Heating power KW 42.95
Numbers of heating area Segment 5+1
Machine dimension(L*W*H) M 10.6*2.28*2.89
Oil tank cubage L 1100
Machine weight TON 29.8

Configuration List:
Name Brand
Computer KEBA(AUSTRIA) or EST
Servo Drive INOVANCE(CHINA)
Servo Pump SUNNY(USA) / SUMITOMO(JAPAN)
Servo Motor PHASE(ITALY)
Electro-hydraulic Proportion valve HNC (Taiwan)
Stroke transducer NOVO or Miran(GERMANY)/GERFRAN(ITALY)
Breaker Schneider (FRANCEN)/Siemens(GERMANY)
Contacts Schneider (FRANCEN)/Siemens(GERMANY)
Switch Schneider (FRANCEN)/Siemens(GERMANY)
Hydraulic Direction Valve Vickers (USA) or Rexroth (GERMANY)
Plasticing Motor DINAMIC(ITALY) or STF(ENGLAND)
Hydraulic Hose MANULI(ITALY)/CONTINENTAI(GERMANY)
Plasticing speed sensor OMRON
Sealing ring HALITE or TREIIEBORG(UK or GERMANY)
