Aluminum-Plastic Film (Aluminum pouch) for 3c Electronic Products / Power Battery

Product Description

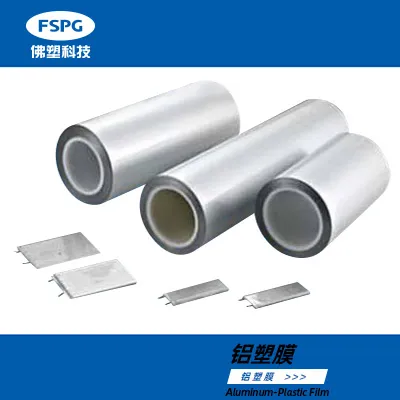

Aluminum-plastic film


Types
Type1:Aluminum-plastic film FS01 88mic
Type2:Aluminum-plastic film FS03 152mic
Type3:Aluminum-plastic film FS02 113mic

Product Parameters:

		Size	88um	91um(black)	113um	113um (PET)	153um	153um (PET)
hardness		um	88	91	113	113(PET)	153	153um (PET)
Peel Strength	NY/AL	N/15mm	4	4	4	4	4	4
	AL/PP	N/15mm	12	12	12	12	12	12
Sealing Strength		N/15mm	65	70	70	70	80	80
Resistance to Electrolyte	AL/PP Peel Strength	N/15mm	8	8	9	9	10	10
	Sealing Strength	N/15mm	60	60	60	60	70	70
The outer layer is resistant to electrolyte corrosion		---	NG	NG	NG	YES	YES	YES
Tensile strength		N/15mm	100	100	120	120	140	140
Standard		Products comply with RoHS, REACH, halogen

Characteristics:
Extremely high barrier, good heat sealing performance, inner material resistant to electrolyte and strong acid, not reacting with electrolyte, good ductility, flexibility and mechanical strength


Application:
FS01/FS02 : electronic products
FS03 : Power battery
Applicable to the packaging and usage requirements of polymer lithium-ion batteries for digital devices such as mobile communication, laptops, MP3s, and power lithium-ion batteries for durable, in vehicle or energy storage.

Storage Condition:
Storage conditions: Store in dry, cool environment; Storage temperature ≤30ºC, relative humidity ≤50%RH;
