Professional Manufacturer Nano Grade Ceramic Sand Mill for Dispersing

Product Description

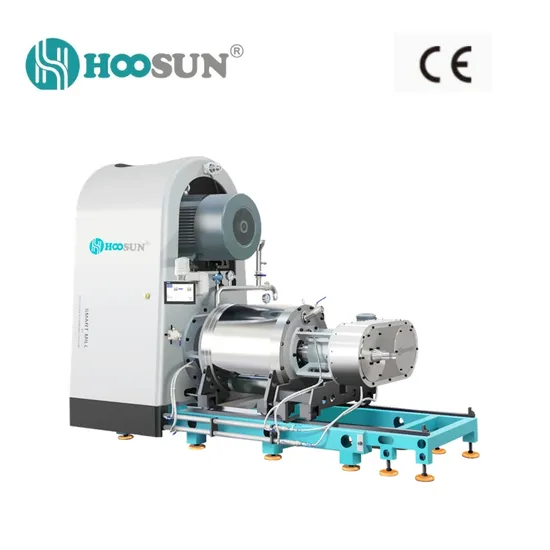

Overview: This high-precision grinding bead mill machine is designed for processing various materials, including battery materials, dye, coating, and ink. It features a dual power centrifugal nano bead mill that operates based on the principle of screen-free centrifugal separation, ensuring high efficiency and precision.
Performance Advantages:
Centrifugal Separation: The dual power nano bead mill uses a centrifugal separator to generate high-speed centrifugal force, enhancing grinding efficiency and precision. Fineness: Achieves fineness between 50-150 nm with zirconia bead diameter ranging from 0.03 to 0.6 mm. Efficiency: The machine offers 2-3 times the effective output per unit time compared to ordinary sand mills. Applications: Ideal for new nano materials, MLCC, lithium batteries, silicon carbon cathode electrodes, alumina, and ceramic ink. Technical Parameters:
Chamber Capacity: Ranges from 0.5L to 400L. Motor Power: Varies from 3.7KW to 415/500KW. Bead Diameter: 0.03 - 0.3 mm. Bead Rate: 80 - 85% Batch Capacity: 1 - 10000L

Model	SMN Lab	SMN 10	SMN 25	SMN 60	SMN 90	SMN 150
Fan power ( Kw)	3.7	22	45	75/90	110	250
Grinding chamber volume (L)	0.5	10	25	60	90	150
Grinding media size (mm)	0.03-0.3	0.03-0.3	0.03-0.3	0.03-0.3	0.03-0.3	0.03-0.3
Batch size (L)	1-7	20-500	50-1000	300-2000	500-3000	1000-4000

Applications: This machine is suitable for milling and mixing various materials, including viscous fluids and powders, making it versatile for different industrial applications such as battery manufacturing, coating production, and more. The precision and high-speed mixing capabilities ensure optimal performance and efficiency in production processes.
