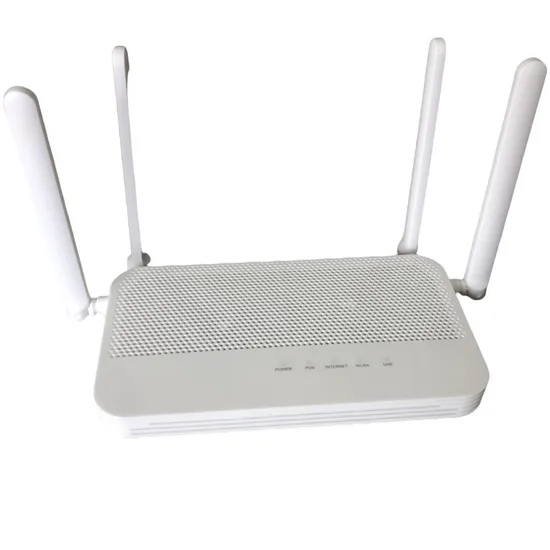

FTTH Eg8247W5 CATV ONU Ont 4ge 1 Port Epon Gopn Xpon 2.4G 5g WiFi

Product Description

Product DescriptionThe Echo Life EG8247W5 GPON ONU, an optical network terminal (ONT), is a high-end home in FTTH solution.By using the GPON technology, ultra-broadband access is provided for home and SOHO users.The EG8247W5 once forwarding capabilities to ensure excellent experience with VoIP, Internet and IPTV services. Specifications*Dimensions(W x D x H):280mm x 200 mm x 40 mm, in the box*Port:4GE+CATV+VOICE+USB +5dbi antenna*Average power consumption:11 W*Operating environment:Temperature: -5ºC~45ºC;*Humidity: 5%-95%, non-condensing*Power supply:Adapter input: 100-240 V AC, 50-60Hz;*Adapter output: 12 V DC, 1.5 A*Weight:About 600g (including the power adapter)

Product name:	EG8247W5
Ports num:	4GE+1USB+1POTS+CATV
Place of Origin:	Guangdong,China
Wifi:	2.4G/5G Dual band WiFi
PPPOE:	Support
OMCI:	Support
Optical Port:	SC/APC,SC/UPC

Pilot Lamp	Status		Description
WIFI	On		The WIFI interface is up.
	Blink		The WIFI interface is sending or/and receiving data (ACT).
	Off		The WIFI interface is down.
WPS	Blink		The WIFI interface is securely establishing a connection.
	Off		The WIFI interface does not establish a secure connection.
PWR	On		The device is powered up.
	Off		The device is powered down.
LOS	Blink		The device doses not receive optical signals or with low signals.
	Off		The device has received optical signal.
PON	On		The device has registered to the PON system.
	Blink		The device is registering the PON system.
	Off		The device registration is incorrect.
LAN1~LAN4	On		Port (LANx) is connected properly (LINK).
	Blink		Port (LANx) is sending or/and receiving data (ACT).
	Off		Port (LANx) connection exception or not connected.
Worn(CATV)	On		Input optical power is higher than 3dbm or lower than -15dbm
	Off		Input optical power is between -15dbm and 3dbm
Normal(CATV)	On		Input optical power is between -15dbm and 3dbm
	Off		Input optical power is higher than 3dbm or lower than -15dbm

Detailed Photos
Packaging & Shipping
Company Profile
Anhui Zhuhuai Import and Export Trading Co.,Ltd. is committed to promoting the development of global optical fiber, optical cable and switch trade. We have a team of energetic and passionate professionals, adhering to the values of "Integrity, Innovation, Interconnection and Progress", with the vision of "Linking the World, Boda World". Our business covers intelligent buildings, overseas optical fiber, fiber optic cables and switches. We always adhere to the customer demand-oriented, through innovation and excellent quality, to provide customers with the best service. Our products are exported to many countries and regions such as Africa and Southeast Asia, and are highly trusted and praised by our customers.
Business field Our business field covers the research, development, production and sales of fiber optic cables as well as switches. Among them, fiber optic cable products include fiber optic cables, fiber optic patch cords, fiber optic adapters, etc., and switch products include Ethernet switches, POE switches, etc.. These products are widely used in the network construction of telecom, mobile, Unicom and other carriers; not only that, but also in the network upgrade and transformation of government, enterprises, schools and other organizations often use our products.FAQQ: Are you a factory or trading company?A: we are a manufacturer & trading companyQ: How to proceed an order for the products?A:Firstly,let us know your requirements or applications;
Secondly,we quote according to your requirements or suggestions;
Thirdly,customer confirms the samples and places deposit for formal order;
Lastly,we arrange the production.Q: Whats your main products?A:Outdoor fiber optic cables;indoor fiber optic cables;FTTH Drop cables ;ADSS; indoor armored patch cords fiber cable SC/LC/FC/ST;MTP/MOP optical patch cord.Q: Do you have certificate for raw materialA:We build long term relationship cooperation with quality ISO9001,ROHS raw material supplier.Q: What''s your products'' advantages?A:Good quality and competitive prices. Strictly quality control when producing.
Professional team work, from design, development, producing, assemble, packing and shipping.Good after-sale service.
Professional online technical support can be provided. Moreover, if any problem of the goods, we will help to solve the problem or provide replacement of the goods.Q: What payment method do you accept?A:T/T(Bank transfer), Western Union, Money Gram, Paypal, etc.Q: What is your delivery time?A:7-15 days for common fiber cables, 10-20 days for your customized requirements.Q: Do you accept OEM,ODM?A:Yes, we accept them .

---
