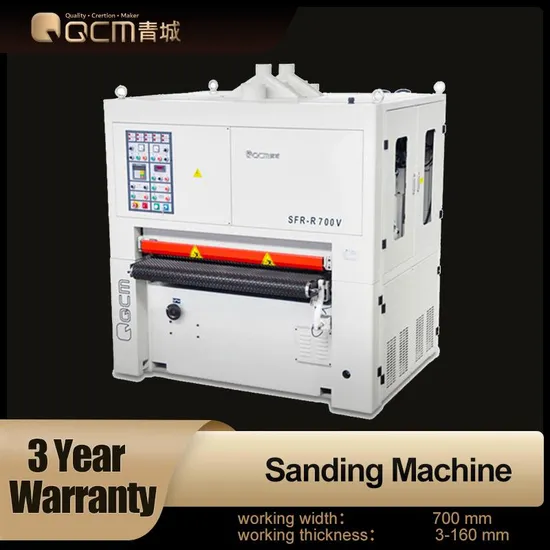

SFR-R700V Floating Primer Sanding Machine for Wood Furniture

Product Description

SFR-R700V Sanding Machine Planing Polishing Multi Function Woodworking Machinery Wide Belt Plywood Floor Hardwood Machine Sander For Metal Product Parameters

Technical Parameter
Model	Double Wide Belts Sanding Machine	Unit	SFR-R700V
Specifications	Sand cutting width	mm	700
	Sand cutting thickness	mm	3-160
	The shortest sand cutting length	mm	300
	Feeding speed	m/min	0-24
	The first sand roller diameter	mm	Φ215
	The second sand roller diameter	mm	Φ215
	Sanding belt size	mm	770*2100
Motor Power	Total motor power	KW	21.47
	1st belt motor	KW	7.5
	2nd belt motor	KW	7.5
	Feeding motor	KW	1.5
	Brush roller motor	KW	0.37
	Lifting motor	KW	0.55
Pressure & Diameter	Vacuum port diameter	mm	3*Φ150/2*Φ180
Dimensions & Weight	Overall dimensions	mm	2050*1510*2350
	Weight	kg	2950

Product Main Features
This product is mainly designed and manufactured by the company to meet the need for fine sanding of wooden product surfaces in the furniture manufacturing industry. It is a floating primer sander.
Its maximum processing width is 700mm, maximum processing thickness is 160mm, and the feeding speed ranges from 0 to 24m/min.
It features a fixed workbench. The sanding frame components adopt numerical control lifting for thickness determination, and the sanding belt speed is adjusted by frequency conversion.It has the advantages of high sanding accuracy and high efficiency.
It is mainly used for primer sanding and pre-treatment of workpieces (sanding before painting). It can also be integrated into an assembly line production with NV and UV painting, which can greatly improve work efficiency. It is an ideal equipment for safety, environmental protection, high quality, high efficiency and in-line production in the furniture manufacturing industry.

	1. Motors for coarse sanding, semi-fine sanding, fine sanding are inside setted, to make cleaning appearance.
	2. The second group of idler rollers is anti-reversal roller, to protect the safety of the operator.
	3. The support plates are made of high quality casting, which makes our machine more stable and high accuracy.
	4. SPR-RP series configured with precision spiral planing cutter module, and in keyboard type sectional pressuring structure. It's can plan and sanding at the same time, stablly and precisely.
	5. SRR630S type is equipped with 8 sets feeding rollers, 3 front, 2 in middle, 3 rear. So it can apply to materails over 230mm length.

Company Profile
About US
QCM Machinery was established in 1970 and have been specializing in production of woodworking machinery for more than 50 years now.
We have our own casting workshop, and more than 300 sets of modern CNC machining equipment and testing equipment, such as Okuma, Mazak, Mitsubishi. Strong R&D team with 55 people can provide our customers with the biggest professional technical support.
Choose our machinery, to help you improve productivity, processing quality, and profit.
Advantages and Service
1. Lead Time?
Within 15 days for regular stock machine after receiving down payment.
45-60 days for customized machines,
60-90 days for busy season.
2. Warranty ?
3 years for machine, 3 years for the core components.
3. Spare Parts?
Unified standards spare parts are available anytime.
4. Voltage?
Regular voltage 380v, 50hz; customized voltage is available.
5. After-sale Service?
24 hours technical support by email, call and video.
our engineer is available to visit at your expenses of accommodation and round tickets.
6. Why us?
1). 50 years experience in woodworking machinery since 1970.
2). Our own casting workshop to insure extra heavy one-piece cast iron machine body for maximum stability and rigidity. Control quality from raw material.

---
