| US$28,650.00-35,642.00 | 1 Set (MOQ) |

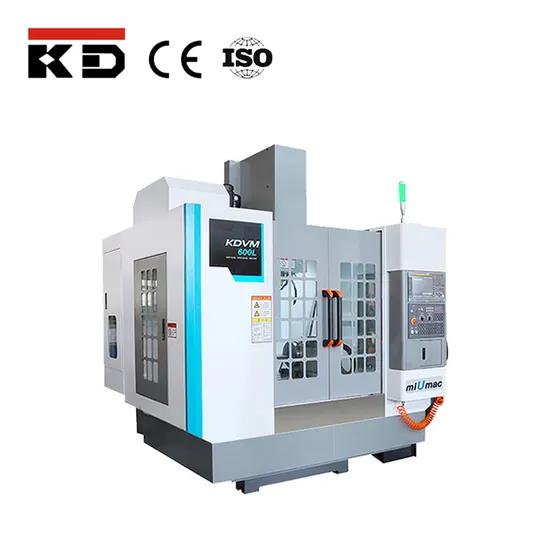

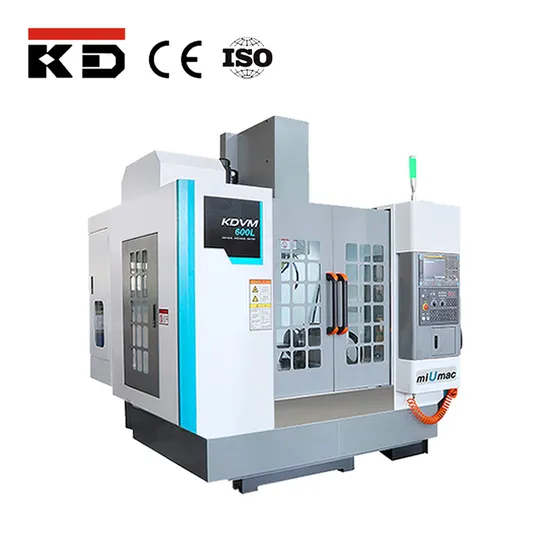

| MODELS | KDVM600L |
| TRAVEL | |
| X axis | 600mm |
| Y axis | 430mm |
| Z axis | 500mm |
| Spindle center to column | 484mm |
| Spindle end to table | 90-570mm |
| TABLE | |
| Tablesize | 720×400mm |
| T-slot(width×number×space) | 18mm×3×110mm |
| Max.table loading | 500kg |
| SPINDLE | |
| Taper bore of spindle | BT40 |
| Spindle power | 9kw |
| Spindle speed | 8000rpm |
| Driving by belt or gears | Belt |
| Kind of gearbox | without gearbox |
| Cutter removal from spindle | Pneumatic |
| FEED | |
| X/Y/Z fast feed | 36/ 36/ 36m/min |
| Torque axis motors | 11/ 11/ 11Nm |
| ATC | |
| Type (disc/carousel) | Carousel |
| Tool number | 20 |
| Max. tool size (With adjacent tool) | Ф76mm |
| Max. tool size (Without adjacent tool) | Ф150mm |
| Max.tool length | 300mm |
| Max.tool weight | 8kg |
| Time (tool-tool) | 2s |
| ACCURACY | |
| Positioning | ≤0.008 |
| Repeatability(X/Y/Z)(ISO) | ≤0.004mm |
| OTHERS | |
| Min.Input | 0.001mm |
| Coolant pump power | 370w |
| Overall dimension | 3550x2100x2400mm |
| Net weight | 3900kg |
