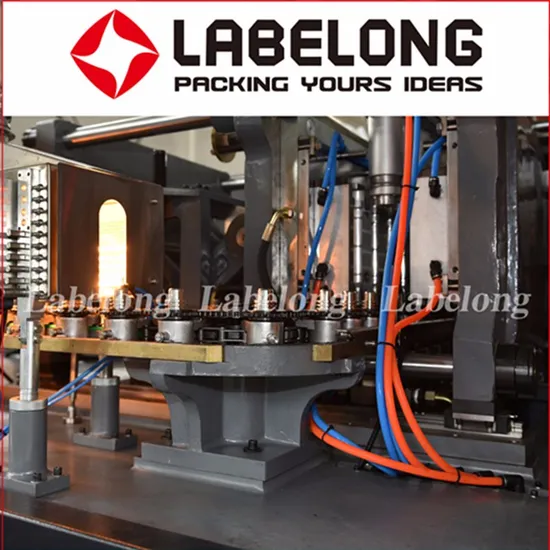

2000bph Automatic Pet Bottle Blow Molding Machinery

Product Description

2000BPH Automatic PET bottle Blow Molding Machinery
1. Conveying preforms automatically with conveyor.
2. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
3. High safeties with security automatic-locking apparatus in each mechanical action, which will make the
procedures turn into a state of safety in case of a breakdown in certain procedure.
4. No contamination and low noise with the air cylinder to drive the action instead of the oil pump.
5. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
6. Strong clamping force with high pressure and double crank links to lock the mold.
7. Two ways of operating: Automatic and manual.
8. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine
easier to understand.
9. Contamination is avoided for the bottle body.
10. Low rejection rate: Less than 0.2 percent.

Technical data

Model		L-2000L	L-4000-L	L-6000-L	L-8000-L
Clamping System	Number of cavity(cavities)	2	4	6	8
	Calmping unit(KG)	20000	48000	65000	96000
Theoretical dimension(BPH)		2200	4000	6000	7500
Machine dimension(L*W*H)(m)		2.6*1.8*1.8	3.8*2.0*2.0	5.6*2.2.1.8	6.2*2.2*2.0
