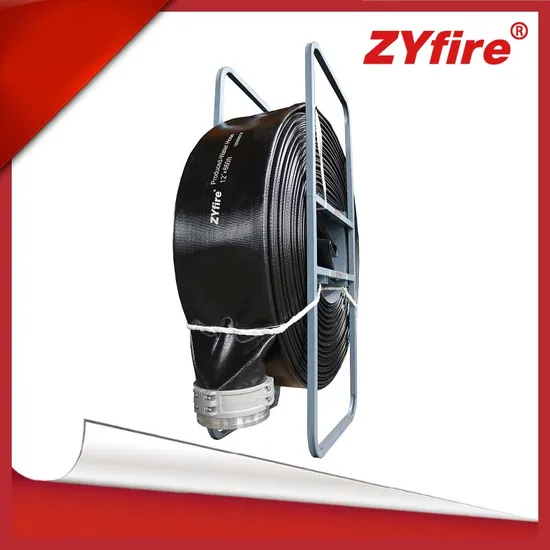

Fracflo Hose Through The Weave TPU Frac Water Hose

Product Description

Fracflo Hose Through The Weave TPU Frac Water Hose
Fracflo Hose
Through-the-weave TPU frac water hose
Cover and Lining: TPU, Ribbed cover or smooth cover.
Reinforcement Jacket: High tenacity synthetic jacket.
Application: Water transfer Fracturing
Available length: 30m (100ft), 61m (200ft), 90m (300ft), 100m (330ft), 200m (660ft), 300m (990ft), 400m (1320ft)
Hose can be with glow line on special requests!
The reinforcement is made from circular woven filament polyester yarn. The "extrusion through-the-weave" production method gives a very strong bonding between cover and lining as well as firmly encapsulating the woven polyester.
The hose has high resistance against commonly used chemicals and has excellent resistance to UV radiation, hydrolysis and fungus degradation. The abrasion resistance of the TPU is one of the highest available, making the hose ideal for use in the extremely abrasive environment in open pit mines.
The outer cover has been designed with extra thickness in order to add wear & tear material. This extends the useful lifespan of the hose.
Extra abrasion resistance for rugged terrain and extreme conditions. Resistant to oil and chemicals. UV Stabilized.
Abrasion: 4000 DIN cycles
Temperature range: -50ºC to 80ºC (-58ºF to +176ºF)

I.D.		Tolerance	Wall Thickness		Service Pressure	Minimum Burst Pressure	Weight				Elongation At WP%	Expansion At WP%	Temperature Range
inch	mm	mm	inch	mm	psi	psi	Lbs/ft	Tolerance lbs/ft	Kg/m	Tolerance kg/m	max	max
2"	51	51-53	0.071±0.008	1.8±0.2	250	750	0.28	±0.067	0.42	±0.1	≤1	≤8	-50 to +80 (-58 to +176)
3"	76	76-78	0.126±0.012	3.2±0.3	250	750	0.64	±0.067	0.95	±0.1	≤1	≤8
4"	102	102-104.5	0.11±0.012	2.8±0.3	200	600	0.72	±0.067	1.08	±0.1	≤1	≤8
4"	102	102-104.5	0.138±0.012	3.5±0.3	250	750	0.94	±0.067	1.4	±0.1	≤1	≤8
4"	102	125-127.5	0.138±0.012	3.5±0.3	300	900	0.87	±0.067	1.3	±0.1	≤1	≤8
5"	125	154-157	0.165±0.012	4.2±0.3	150	300	1.2	±0.134	1.8	±0.2	≤1	≤8
6"	152	154-157	0.118±0.012	3±0.3	150	450	1.07	±0.067	1.6	±0.1	≤1	≤8
6"	152	154-157	0.15±0.012	3.8±0.3	250	750	1.41	±0.134	2.1	±0.1	≤1	≤8
6"	152	154-157	0.165±0.012	4.2±0.3	300	900	1.74	±0.201	2.6	±0.2	≤2	≤8
6"	152	154-157	0.228±0.016	5.5±0.4	640	1230	2.11	±0.201	3.15	±0.3	≤2	≤8
6"	152	154-157	0.228±0.016	5.6±0.4	725	1830	2.14	±0.134	3.5	±0.3	≤2	≤8
8"	204	204-207	0.15±0.012	3.8±0.3	200	600	1.94	±0.134	2.9	±0.2	≤1	≤10
8"					250
8"	204	204-207	0.177±0.016	4.5±0.4	300	900	2.28	±0.134	3.4	±0.2	≤1	≤10
10"	254	256-259	0.165±0.016	4.2±0.4	200	600	2.75	±0.201	4.1	±0.2	≤1	≤10
10"					250
10"	254	256-259	0.197±0.016	5.0±0.4	300	900	3.75	±0.201	5.6	±0.3	≤2	≤8
12"	306	306-311	0.165±0.016	4.2±0.4	150	450	3.33	±0.201	4.97	±0.3	≤1	≤8
12"	306	306-311	0.228±0.0197	5.8±0.5	200	600	4.3	±0.201	6.4	±0.3	≤2	≤8
14"	356	356-360	0.205±0.0197	5.2±0.5	150	450	4.96	±0.201	7.4	±0.3	≤1	≤8
16"	406	406-410	0.205±0.0197	5.2±0.5	150	300	5.09	±0.201	7.6	±0.3	≤1	≤10

---
