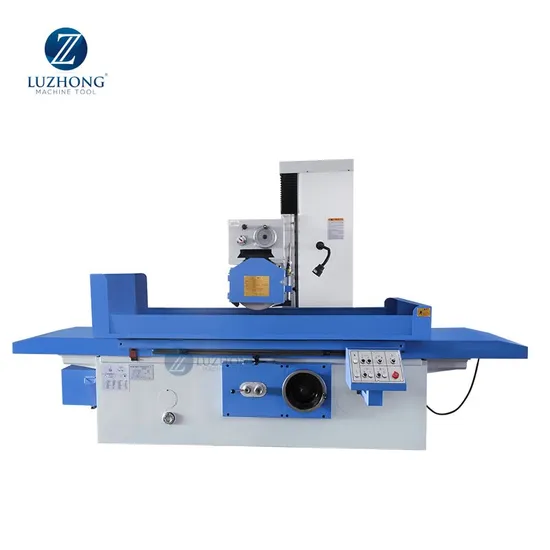

Luzhong heavy duty metal M7180 surface grinder machine for sale

Product Description

Luzhong heavy duty metal M7180 surface grinder machine for sale
Product Description
Product Parameters
Product main technical specifications:

Specifications		Units	M7180x1250	M7180x1600		M7180x2000
Size of work table(L x W )		mm	1250x800	1600x800		2000x800
Max. Longitudinal movement of worktable		mm	1350	1700		2100
Max. Distance from the spindle centerline to the worktable surface		mm	850	850		850
Max. Cross movement of grinding herd		mm	850	850		850
Max. Vertical movement of grinding head		mm	800	800		800
Vertical movement of the grinding head by hand wheel	per graduation	mm	0.01	0.01		0.01
	per graduation	mm	1.00	1.00		1.00
Rapid lifting motor	Power	kw	0.37	0.37		0.37
	Speed	R/min	1450	1450		1450
Abrasive wheel dim (L x D x W)		mm	450x127x50		450x127x50	450x127x50
Speed of grinding wheel		r/min	1440		1440	1440
Total power of motor		KW	20		20	20
Power of spindle motor		KW	11		11	11
Power of oil pump motor		KW	7.5		7.5	7.5
Processing accuracy		mm	0.015/1000		0.015/1000	0.015/1000
Surface roughness		um	Ra:0.63		Ra:0.63	Ra:0.63
Package(L x W x H)		mm	3800x2900x3100		4500x2900x3100	5500x2900x3100
Net weight		Kg	9000		10000	11000

Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
