Automatic and high speed pet bottle unscrambler / bottle unscrambling machine

Product Description

Product Description
Automatic and high speed pet bottle unscrambler / bottle unscrambling machine
Product Description
Machine introduction :
Bottle unscrambler is based on introducing advanced technology from overseas, developing and researching unscrambling equipment with domestic advanced level according to high speed development demand of our country beverage filling equipment.
Main features :
1.Main motor reducer adopts torque limited mechanism in order to prevent machine failure to damage the machine.
2. Adopt twice putting forward unscrambling mechanism, ensure every working station for dropping bottle has bottles ,improve bottle coming out efficiency.
3. Adopt hanging bottle opening transportation air passage to avoid bottle turnover during transportation.
4. Set up removal mechanism of damage bottle
5. Set up jamming bottle detector, automatic shutdown and alarm while jamming bottle
6.Set up no bottle detector, is used for lifter sending out working signal, lifter can supply bottle automatically
7. Transporting bottle air passage has photoelectric switch and is used for control start and stop of bottle unscrabmbler.
8. Bottle unsrambler has grease filling nozzle and can fill lubricating oil for gear ,bearing and cam.
9. Set up maintenance door and mold change door
10. Main electrical component (frequency inverter, PLC,photoelectric switch, relay)adopts MITSUBISHI,OMRON,SIEMENS,ETC.
11. Air circuit system adopt imported products
Main technical parameter

Model	LP-12	LP-16	LP-18	LP-21
Work position	12	16	18	21
Production capacity(b/h)	6000-8000	8000-10000	12000-15000	18000-20000
Gas source pressure(Mpa)	0.7	0.7	0.7	0.7
Gas consuming volume(m3/min)	0.5	0.5	0.5	0.5
Suitable bottles type(mm)	350-1200ml φ50-90	350-1200ml φ50-90	350-1250ml H=150-290	350-1250ml H=150-290
Main motor power(kw)	2.2	2.2	3.0	5.5
Fan power(kw)	2.2	2.2	2.2	2.2
Dimension(mm)	φ1800x2000	φ2100x2150	φ2650X2290	φ2800x2400
Weight(kg)	2500	3500	4200	5200

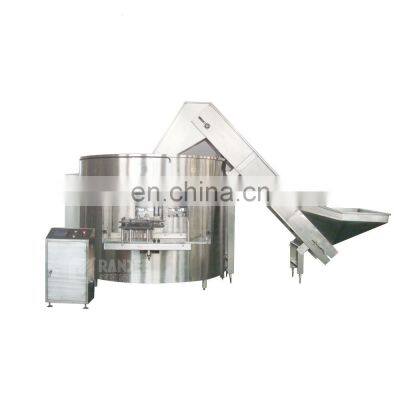

Machine show:
