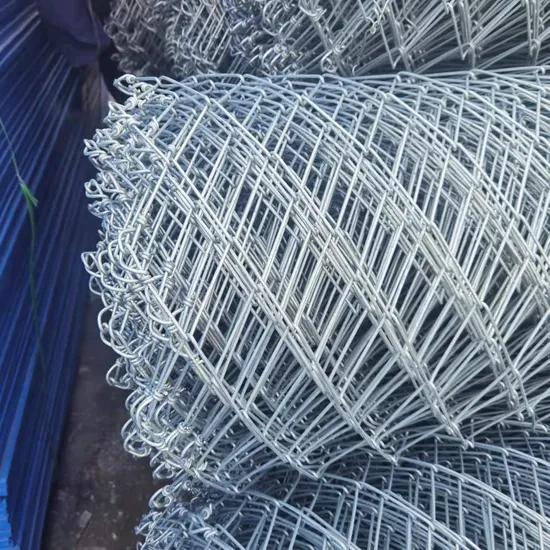

1770MPa High Tensile Galvanized Steel Chain Link Fence Slope Protection Mesh Sns Flexible Rockfall Protection Net

Product Description

1770MPa High Tensile Galvanized Steel Chain Link Fence Slope Protection Mesh Sns Flexible Rockfall Protection Net
PRODUCT INTRODUCTION Rockfall Protection Mesh refers to various types of rockfall barriers are installed and fastened to the
mountains or slopes. Compared with passive rockfall barrier system, which is installed beside the roads,
the active rockfall barrier system is covering the mountains and prevent the stones and soils from falling
down. It is widely used in the slope protection, mountain protection, vegetation protection and road
protection. It can reduce the damage caused by the natural disaster.Common types of Rockfall Protection Mesh are chain link mesh, tecco mesh, spider spiral rope mesh and
hexagonal wire mesh.
PRODUCT SPECIFICATION
Materia: Zinc Coating Aluminum Alloy WireSurface treatment: Hot dipped galvanized, zinc-aluminum coated.Zinc thickness: No less than 150 g/m2Wire diameter: 3 mm, 4 mm.mesh size:80mm x 140mm/4.5mm*7cmMesh type: Rhomboid hole.Tensile strength: Minimum 1770 MPa.Braking load of single wire: 12.5 kN.Mesh roll width: 2.8 /2.85MMesh roll length:35 m.Fitting : Steel anchor, claw type spike plate, soil or rock nails,clips, sewing rope, boundary rope. (The steel anchor is madeofdeformed steel bar of 25 mm diameter)

wire diameter	2mm-4mm
mesh size	80mm x 140mm
Mesh shape	diamond
high tensile strength	1770Mpa
Breaking load of single wire	12.5KN
Tensile strength	110KN/m
Roll width	2.5m-3.5m
Roll length	10m-30m

PRODUCT FEATURES
PACKING & SHIPPING
PRODUCT APPLICATION
Company infomation
FAQ
Q: Are you a manufacturer? A: Yes,we have specialized in this field for about 10 years experience. Q: Could you provide sample? A: Yes,we can provide sample together with our catalogue. But the courier charge will on your side. We'll send back the courier charge if you make an order. Q: What information should I provide,if I want a lowest quotation? A: The specifications of wire diameter, length, quantity, packing, etc. Q: How does your factory do regarding quality control? A: We are very proud to let you know that, we use the best raw material,have at least 5 years experienced workers the advanced machine and specialized team to assure the quality. We perform Quality Control Inspections on 100% of our products. Our inspection standards are strictly in accordance with ISFO9001 Certification system. Q: How is your delivery time? A: We always prepare enough stock material for your urgent requirement. The delivery time is 7days for all the stock material. We'll check with our production department for the non-stock items to offer you the exact delivery time and producing schedule. Q: How do you ship the goods? A: Usually by sea. Q: What is the payment? A: We usually use the T/T, L/C, Western Union.
contact information:
Linda Zhang
company: anping yaqi wire mesh products co.,ltd
Add:Nanzhangwo Industry area, Hehuang road No.168. Anping County, Hengshui Hebei ,China
