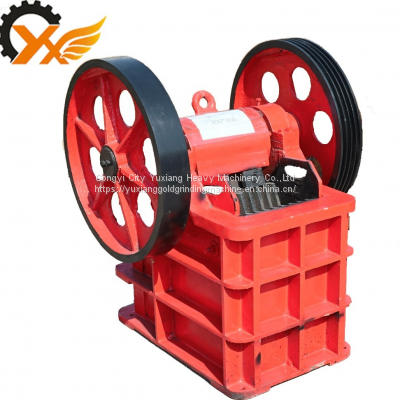

Stone crushing machine Pe250x400 mini jaw crusher

Product Details

Product Description

Product Description
Stone crushing machine Pe250x400 mini jaw crusher
Product Description
Jaw Crusher is widely used aggregate crusher to crush all kinds of materials with a compressive strength lower than 320MPa in mining,metallurgy,public road,railway,hydropower and many other industries.
Working Principle
The basic structure of a jaw crusher generally includes seven parts such as driving medium,rack,the jaw plate and side rack ,flywheel,lubrication device,adjusting device and the reset spring.
The main structure of the Jaw Crusher are composed of stander, eccentric shaft, belt pulley, flywheel, movable jaw plate, wrist plate ,adjustable gap screw, offsetting spring, fixed jaw plate. The wrist plate also has the effect of guarding.
This Jaw Crusher's crushing style is the type of driving extrusion. The motor drives the belt and belt pulley to make the moveable jaw move through the eccentric shaft. When movable jaw is rising ,the included angle between the wrist plate and movable jaw becomes bigger to drive the movable plate to be close to the movable plate. At the same time the material is squeezed and rubbed, rolled to achieve multiple crushing;
When movable jaw is descending, the included angle between the wrist plate and movable jaw becomes smaller. Now the crushed material is discharged from the crushing cavity, with the continuous rotation of the motor, the movable jaw crushing and discharging the material periodically to realize batch production.
Parameter list\
Jaw crusher technical parameters >>

Model	Feeder Openining size(mm)	Max. Feeding size (mm)	Discharging Opening Size(mm)	Capacity (t/h)	Motor Power (KW)	Weight (kg)	Overall Size(mm)
PE150x250	150x250	130	15-45	1-4	5.5	700	896x745x935
PE250x300	250x300	165	15-55	2-8	11	800	1050x987x1000
PE250x400	250x400	210	25-60	5-20	15-18.5	3000	1215x1520x1030
PE400x600	400x600	340	40-90	10-40	30	7200	1650x1588x1050
PE350x750	350x750	290	15-50	20-50	37	8900	1485x1680x1648
PE500x750	500x750	425	500-100	34-88	55	11320	1956x1918x1920
PE600x900	600x900	480	60-125	40-120	75	17600	2250x2733x2280
PE750x1060	750x1060	630	60-150	80-160	90	30530	2531x2455x2783
PE900x1200	900x1200	750	110-165	110-220	110	50000	3100x2760x3260
PE1200x1500	1200x1500	1020	115-195	400-800	160	100000	3710x3446x4075
PE150x750	150x750	125	10-40	5-15	15	3600	1310x1118x1145
PE250x1000	250x1000	210	15-60	10-32	30-37	7350	1550x1946x1380
PE250x1200	250x1200	210	15-60	12-38	37	8700	1530x1964x1380
PE300x1300	300x1300	250	25-60	15-65	65	11600	2000x2320x1730

PE 150x250 size :
Features:
1. Deep-chamber Crushing, High Efficiency and Energy Conservation.
The optimized deep-chamber crushing has no dead zone, so the feeding and crushing efficiency is greatly improved. It can save energy 15%-30% per machine, and the system can save energy more than 1 time.
2. Strong Bearing Capacity and High Stability
The combination of bigger heavy eccentric shaft processed by forging stock, high-manganese steel jaw plate and high-level cast steel movable jaw make the equipment has a stronger bearing capacity and higher stability.
3. Advanced Processing Technology and Long Service Life
Learn advanced manufacturing technology and make a digital analysis of every part's functioning state. It has a compact inner structure and longer service life.
4. Centralized Lubrication System and Easy Maintenance
The uniquely designed centralized lubrication system makes it much quicker in part lubrication and less in maintenance work.
5. Simple Structure, Convenient Check and Repair
Simplify the excessive components on the basic principle of compound pendulum, making the whole equipment simple, efficient, strong in crushing capability, convenient in operation and maintenance and low in operation cost.
6. Big Regulation Range of Discharging Granularity, Multi-Functions
The spacer type discharging regulation device improves its adjustment range of discharging granularity and flexibility, so it can satisfy all kind of processing requirements of customers.
7. Low Noise and Little Dust
This equipment is accordance with the national environmental protection standard. It has low noise and can be equipped with dust removing device. The working environment conforms to the environmental protection requirements totally.
Company Information
GONGYI YUXIANG HEAVY MACHINERY CO.,LTD. is an professional manufacturer of wet pan mill&mining series machines,with R&D team, excellent technical team, sales team and strong production capability, we have been devoting our self to the development and promotion of gold mining machinery and all our products have got CE certificates.

---
