Product Description
Product Description

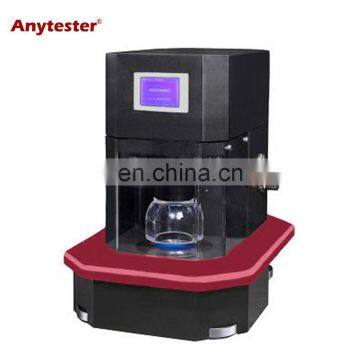

Product Description HY032E Bursting Strength Tester is used to determine the bursting strength of all kinds of textile by hydraulic method.Standard ASTM D3786ISO13938.1/5077/6330GB/T 7422FZ/T 01030, 60019BS 4768WOOLMARK TM 29WSP 30.1JIS L 1018.6.17 Note: For more standards, please contact usFeatures 1 Microcomputer control, LCD display, touch screen control2 Special design clamp to hold sample firm3 With analog type pressure meter to display the pressure applied on the specimen4 With printer interface to print test report5 Stepless settable test speed can be selectable in one machine6 Professor pc software to show test result including bursting strength, bursting pressure, bursting height and bursting time etc.Specification ModelHY032E-2HY032E-10Specimen holder7.3 cm2(Φ30.5mm), 50 cm2(Φ79.8mm)interchangeablePressure range 0~2MPa1 ~ 10MPaResolution1KPa3KPaPressure accuracy≤±2%Bursting height range0.1~75mmBursting height accuracy±0.1mmClamping force of upper holder>690kPaTest speed20ml/min~600ml/min settableTest speed accuracy±10%Power supply AC220V, 50HzDimensions 550×450×700mmWeight 125kg
>>
