24GHz Microwave Automatic Fast Overhead Garage Sliding Swing Door Motion Sensor Radar

Product Description

Product Description

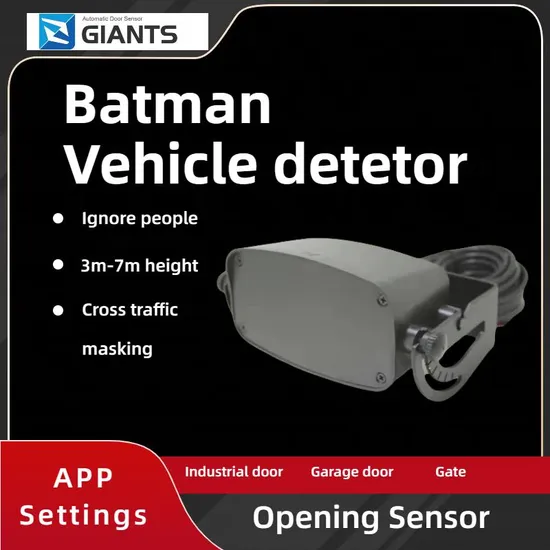

BATMAN
INDUSTRIAL DOOR OPENING SENSOR
Human and vehicle separating detection
Your economical and reliable sensor for industrial doors!
Batman is designed for industrial doors,gates and garage doors as an opening sensor, capable of distinguishing between people and vehicles. Batman has a mounting height ranging from 3 m to 7m, and its cross-traffic masking,digitally adjustable.
It can perfectly replace the loop detector, without the need to dig up the ground, providing both aesthetics and time savings.
Key Features
People and Vehicle Seperating Detection
Batman is designed to identify pedestrian or vehicle-allowing the door to open only for vehicles-or for both vehicles and pedestrians. This enhances passage efficiency and conserves energy.
BATMAN offering two detetion options:
-Detects vehicles only
-Detects both people and vehicles.
Cross traffic masking
Batman excels in recognizing lateral movements of vehicles or pedestrians, ensuring doors open only when necessary. Its outstanding performance in this aspect sets Batman apart.
Flexible Installation Height (3 meters - 7 meters):
Tailor Batman to your space! With a height range of 3 meters to 7meters,Batman seamlessly integrates into industrial, commercial, and garage door environments, ensuring optimal performance.
Detection Direction :
3 Options in Direction,
Approaching detection
Leaving detection
Both direction detection
Set by APP or Push button:
Batman provides two methods of configuration.It utilizes an APP to configure all parameters, making the setting process effortless. Additionally, physical push buttons are retained. This ensures that the sensor can be tuned in any situation.
With this APP, you could easily configure:
1.Detection object: Vehicle/People and Vehicle
2.Sensitivity:7 levels
3.Field size:3 levels
4.Output hold time:1sec to 5 sec.
5.Detection direction:Near/Far/Both directions
6.Cross traffic masking: 9 levels
7.Filter: on or offWiring
Applications
Application:Gate Application: Cold storage door
Application: Stereo garage door Application: High speed door
Technical Data

Technology	Doppler radar
Transmission frequency	24.125GHz
Transmission power	< 20dBm
Detection height	3.0m~7.0m
Adjust angle	0º~ 180º longitudinal
Detection speed	5cm/s ~ 25km/h
Filed size	3.0m*3.5m@2m height; 5m*6m @7m height
Temperature	-30ºC to +60ºC
IP class	IP65
Power supply	12-36V AC/DC
Output	Max. voltage 48VAC/DC; Max. current 1A
Cable length	5m
Weight	550g
Housing material	ABS+PC

Batman,your economical and reliable sensor for industrial doors!

---
