5inch Distillers Wiped Film Short Path Distillation for Canna Distillation

Product Description

Product Description
5inch Distillers Wiped Film Short Path Distillation for canna distillation
Wiped film Molecular Distillation / Short Path Distillation is a comparatively new separation technology. It can separate liquid-liquid mixture under temperature that is far lower than boiling point by the difference of mean free path of molecules under high vacuum condition. Such separation is difficult or unable to achieve on normal distillation equipments. Molecular Distillation is especially suitable to separate substance of high boiling point, heat sensitive and easy to be oxidized.

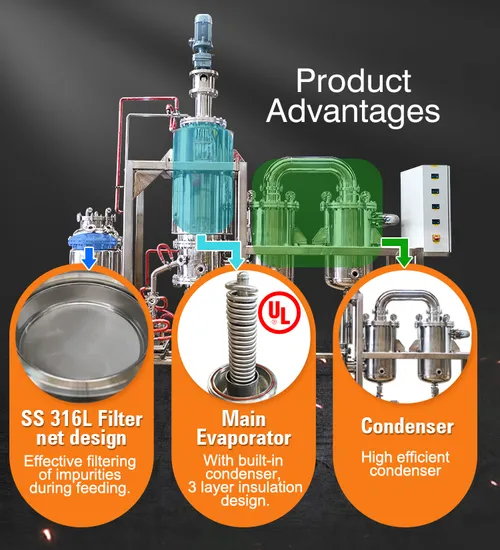

Detailed Photos
Product Parameters

14 inch molecular distillation MDS-100CE 30~200l/h
Storage tank for crude oil	100L storage tank with three layer, inside layer for heating, outside layer for insulation purpose; With filter screen inside
Feeding method	high precision gear pump, 750W
	30~200L/h flow rate base on your pre-processing
Evaporator with internal condenser	evaporator area 1m2 with internal condenser
	roll type scraper
	SS316L material
	Mechanical seal type
	750W motor
External condenser	2m2 external condenser 1 pc
	Dual use 4m2 external condenser with 5L cold trap
	5L jacket collection tank, the jacket for insulation purpose
Heavy phase discharge	Gear pump discharge, 750W, 50L insulation tank
	30~200L/h flow rate
Light phase discharge	Gear pump discharge, 750W, 50L insulation tank
	30~200L/h flow rate
Pipes for machine	Jacket with insulation purpose
Support frame	SS304 material

Certifications
Packaging & Shipping
Company Profile
FAQ
1.Q:Are you trading company or manufacturer?
We are professional manufacture of lab equipment and we have our own factory. And welcome to visit our factory.
2.Q:What's the processing capacity do you have?
We can offer you 1~3L/H, 5~12L/H, 10~25L/H, 18-30L/H, 20~60L/H.
3.Q: Can you do OEM service ?
A: We can provide the specific products needed around the world at significantly lower costs.
TOPTION also offers a Private Labeling Program to provide high quality lab supplies at lower prices.
If you need further information regarding our OEM or Private Label programs, please contact us freely.
4.Q: How long is your delivery time?
A: Usually, delivery time is 30-45 days after receiving your payment.
5.Q: How about your quality warranty ?
A: Normally all TOPTION products are supplied with a warranty of 12 Months from the date of shipment.
6. Q:Can we visit your factory?
A: Welcome visit our factory.
7. Q:If we want to customize molecular distillation , is it available?
Sure,we are experienced at this,we have professional technical team, we can design the drawing according to your requirements and then produce it.

---
