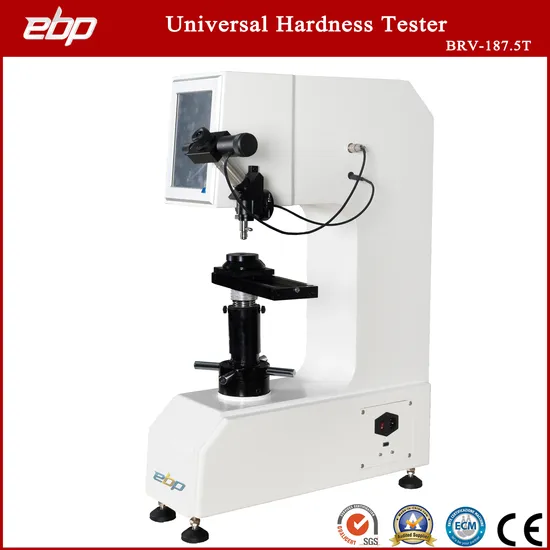

Touch Screen Digital Benchtop Universal Metal Hardness Tester with Brinell Rockwell and Vickers Scales Analog Display

Product Description

Product Description Touch Screen Digital Benchtop Universal Metal Hardness Tester with Brinell Rockwell and Vickers Scales
Main Features:
1) Equipped with Brinell, Rockwell, Vickers test methods;
2) 8 inch Touch-screen interface, easy to operate
3) Close loop, with high accuracy load cell, no need install weights;
4) Test force automatic correction, each file is automatically compensated force, improve the accuracy of the force a number of levels;
5) According to GB / ASTM hardness automatic conversion;
6) Rockwell automatically correct curvature radius;
7) Set a password to protect setup parameters, more samples and testing information;
8) Measuring U disk to save data to EXCEL format for easy editing and processing.
9) Modular design for easy maintenance.
Product Parameters

Brinell Scale	HBW1/5, HBW2.5/6.25, HBW1/10, HBW2.5/15.625, HBW1/30, HBW2.5/31.25, HBW2.5/62.5, HBW10/100, HBW5/125, HBW2.5/187.5
Rockwell Scales	HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV
Vickers Scale	HV5, HV10, HV20, HV30, HV40, HV50, HV60, HV80, HV120
Test force	Rockwell: 60kgf(588N), 100kgf(980N), 150kgf(1471N); Initial test force:10kgf(98N); Brinell: 5kgf(49N), 6.25kgf(61.25N), 10kgf(98N), 15.625kgf(153.125N), 30kgf(294N), 31.25kgf(306.25N), 62.5kgf(612.5N), 100kgf(980N), 125kgf(1225N), 187.5kgf(1837.5N) Vickers: 5kgf(49N), 10kgf(98N), 20kgf(196N), 30kgf(294N), 40kgf(392N), 50kgf(490N), 60kgf(588N), 80kgf(784N), 100kgf(980N), 120kgf(1176N)
Indication accuracy	Brinell: 8-650HB (δ/%):±2.5; Rockwell: ±0.1HR; Vickers: ±2
Repeatability	Brinell: 8-650HB (Hcf/%):≤3.0; Rockwell: 0.5HR; Vickers: ≤2.5
Hardness range	Brinell: 8-650HBW; Rockwell: 20-100HR; Vickers: 8-2900HV
Force error	<0.5%
Holding Time	0-60s
Minimum measuring unit	0.1µm
Allowed maximum sample size (test space)	Allowed max. Sample height in vertical: 220mm(for Rockwell); 170mm(for Vickers & Brinell test mode); Allowed max. Sample height in horizontal: 200mm
Magnification	Eyepiece: 15X, 2.5X (for Brinell), 5X (for Vickers) (10X, 20X for optional) Total magnification: 37.5X, 75X
Hardness read	Touchable LCD display, USB Flash Disk
Power supply	AC220V, 50-60Hz
Implementation of the standards	ISO 6508,ASTM E-18,JIS Z2245,GB/T 230.2 ISO 6506,ASTM E10-12,JIS Z2243,GB/T 231.2 ISO 6507,ASTM E92,JIS Z2244,GB/T 4340.2
Dimensions	Machine size: 560*260*800mm Packing size: 730x450x910mm
Weight	N/W: 70kg; G/W: 99kg

Standard Accessories (The Packing List):

Part name	Quantity	Name	Quantity
15X eyepiece	1	Brinell indenter diameter of 2.5mm, 5mm, carbide ball	1 each
Vickers indenter	1	Rockwell 1.588 carbide ball indenter	1
Rockwell diamond indenter	1	Objective Lens 2.5 x, 5x	1 each
Hardness block	5pcs	Exterior lighting	1
Power line	1	Large, medium, V-test sets	1 each
Sliding test sets	1	U disk (with an Operation manual)	1
Fuse 2A	2	Adjust level screw	4
Dust proof cover	1	Accessory box	1

Company Profile
EBP's mission is to be recognized as the global professional leader & best partner in the materials preparation and analysis industry, providing our users with innovative & robust full lab-solutions, reliable service, support & access to the knowledge that comes from our team serving the industry for 10+ years. We have 8 senior engineers who working in hardness tester and material testing industries over 10 years. We are skilled in provide complete solutions to our customers. And our professional sales & after-sales team can help our partners develop market more easier! Main products
EBPu Electromechanical Equipment (Zhejiang) Co., Ltd. is one of the professional companies in market, we are committed to becoming the most satisfied supplier to our partners & clients! Our products range: Sample preparation machine, Hardness tester, Metallographic Microscope, Non-destructive Testing Instruments (NDT), Universal testing machine, Impact testing machine and related consumable materials.
