Digital X ray Dry Thermal Imager Medical X-ray Film Printer for DR CR MRI CT

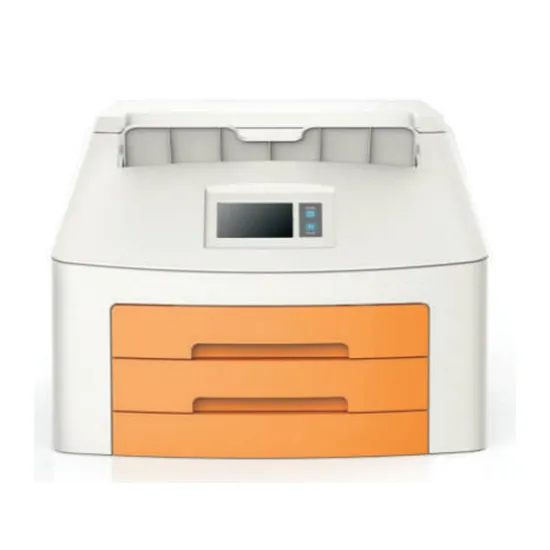

The MCI2000 Dry Imager is a thermo-graphic film processor designed to copy and send images through DICOM network protocol. It uses the latest direct dry thermal imaging technology which accommodates for a full range of modalities including CT, MRI, DR, CR, Digital Gastrointestinal, Nuclear Medicine, Mobile X-Ray Imaging, and Dentistry, etc. The MCI2000 Dry Imager dedicates to precision in diagnosis with its outstanding image quality, and offers affordable imaging catering to your needs.
| Print Technology | Direct thermal (dry, daylight-load film) |
| Spatial Resolution | 320dpi(12.6 pixels/mm) |
| Throughput | 14*×17"≥70 sheets/h;8"×10"≥90 sheets/h |
| Grayscale Resolution | 14 bits |
| Film Transferring Method | Rubbing |
| Film Tray | Two supply trays, 200-sheet capacity total |
| Film Sizes | 8"×10",10"×12",11"×14",14"×17" |
| Applicable Film | Medical Dry Thermal Film(blue or clear base) |
| Interface | 10/100/1000 Base-T Ethernet (RJ-45) |
| Network Protocols | Standard DICOM 3.0 connection |
| Image Quality | Automatic calibration using built-in densitometer |
| Control Panel | Touch Screen, Online Display, Alert, Fault and Active |
| Power Supply | 100-240V AC 50/60Hz 600W |
| Weight | 50Kg |
| Operating Temperature | 5ºC-35ºC |
| Operating Humidity | 35%-85% |
| Storage Humidity | 30%-95% |
| Storage Temperature | -22ºC-50ºC |
| Base Holding | Optional |
