Product Description
Product Description

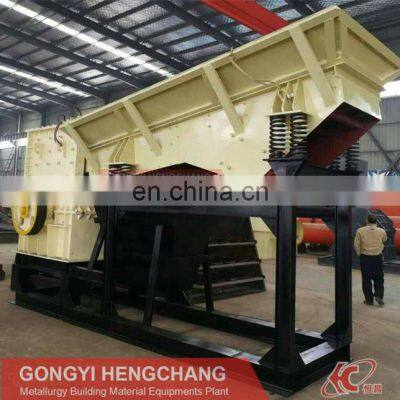

Products Description40TPH 50TPH PCZ0710 Mobile box Heavy Punch crusher station The mobile crusher station is mainly used for metallurgy, chemical industry, building materials, hydropower and other materials that often need to be relocated, especially for the operation of fluid stone materials such as highways, railways, hydropower projects, etc. The user can according to the type and scale of the raw materials processed Different from the requirements of finished materials, a variety of configuration forms are adopted. Mobile crushing stations are mostly used in construction waste disposal projects in urban demolition. Crushing and sieving construction waste into several kinds of recycled aggregates of different sizes and rules is the basis of the project to realize the reuse of construction waste .1. It is widely used in mines, coal mines, garbage and construction waste recycling, earthwork, urban infrastructure, roads or construction sites.2. Treatment of topsoil and other materials; separation of viscous concrete aggregates; construction and blasting industries; sieving after crushing; quarrying industries.3. Artificial sand making of river pebbles, mountain stones (limestone, granite, basalt, diabase, andesite, etc.), ore tailings, rock chips.Categorical planMobile Box crusher station The stone materials are evenly conveyed into the crusher by the feeder. After the crusher is initially crushed, a closed circuit system is formed by a circular vibrating screen to realize the cyclic crushing of the materials. The finished materials are output by the conveyor for continuous crushing operations. The box mobile crusher can remove the circular vibrating screen according to the actual production needs, and realize the preliminary crushing of the material directly. It is convenient and flexible to use with other crushing equipment.Mobile impact crusher stationThe impact crusher is a mobile crushing equipment that uses the impact crusher as the main machine. The impact crusher is generally used as the secondary crushing equipment after the jaw crusher in the entire crushing process.Mobile cone crusher stationCone crusher can not only properly perform the function of fine crushing, but also directly produce finished products of medium and fine-grained sand and gravel materials. It has comprehensive functions and can directly select the site and open to the site without transportation. It can directly reach the granularity of the finished product; It can directly send the broken materials to the specific transfer belt conveyor, saving transportation costs.Product CharacteristicsThe classification of mobile crushing station mainly includes: mobile jaw crusher station, mobile impact crusher station, mobile cone crusher station.1. Strong mobility: The length of the mobile crushing station for tires is short, and different crushing equipment is installed on an independent movable chassis respectively. The wheelbase is short and the turning radius is small. It can be flexibly driven on ordinary highways and operating areas.2. Integrated unit: the installation form of integrated unit equipment eliminates the complicated site infrastructure installation operations of split components and reduces the consumption of materials and working hours. The reasonable and compact space layout of the unit improves the flexibility of the site.3. Reduce material transportation cost: The mobile crushing station can process materials on site without having to move the materials away from the site for reprocessing, which greatly reduces the transportation cost of materials.4. The operation effect is direct and effective: the integrated series of mobile crushing stations can be used independently, and can also provide more flexible process configuration according to the customer's material type and product requirements in the process, to meet the user's mobile crushing, mobile screening, etc. This requirement makes the organization and logistics transfer more direct and effective, and the cost is maximized.5. Flexible combination and strong adaptability: the mobile tire crushing station can be composed of "first crushing and then sieve" according to different crushing process requirements, and can also be composed of "sieve first and then crushing" process. The two-stage crushing and screening system for fine crushing can also be combined into a three-stage crushing and screening system for coarse crushing, medium crushing and fine crushing. It can also be operated independently and has great flexibility.6.The tire-type mobile crushing station provides a simple and low-cost combination of special unit configuration. For coarse and fine crushing sieving systems, single unit can be used for independent operation, or it can be flexibly composed of system configuration unit for joint operation. The hopper side out provides a variety of configuration flexibility for the screening material transportation method. In addition to the power supply of the diesel generator in the integrated unit configuration, it can also be targeted to the process system to configure unit power supply.Product ParamentersMobile BOX crusher stationModelPCZ0710PCZ0912PCZ1010PCZ1212PCZ1414Max feeding size(mm)0-5000-8000-8000-9000-1000Capacity(t/h)40-7070-9080-120100-150120-200FeederGZD300×95ZSW380×95ZSW420×110ZSW900×100ZSW500×130Fine CrushingVibrating Screen3YA15363YA15453YK21603YK24603YK2460Sand Making MachinePL700PL850PL850PL1000PL1200Auxiliary EquipmentMobile belt conveyors, hydraulic supporters, iron separators, electric control system and etc.Mobile impact crusher stationMobile impact crusher plantModelPF1010PF1210PF1214Crusher plant sizeLength(m)10.812.212.5Width(m)2.52.72.9Height(m)4.24.24.2Impact crusherFeed size(mm)350350400Output size(mm)5-605-605-60Capacity(t/h)50-8070-120130-180Motor power(kw)55-75110-132160-200Vibrating feederCapacity(t/h)80-120100-160130-260Motor power(kw)7.51115Diemension(m)3.3*1.6*1.33.7*1.8*1.24.3*1.8*1.4 Mobile cone crusher stationModelM3Y1548P900M3S1848P1200M3Y1860S90M3Y1860S130Cone CrusherPYB900PYB1200PSGB900PSGB1300Vibrating Screen3YK15483YK18483YK18483YK1860Belt Conveyor650*7650*7650*7800*8Number of Axis2223Transportation Dimensions (mm)11500*2450*395013800*2450*395014000*2850*420014600*2850*4200Production Advantages1. High-performance crusher equipments2. Integration of vehicle-mounted motor and control box;3. Feeder and vibrating screen integrated with jaw crusher, cone crusher, vertical impact crusher, etc .;4. On-board installation of integrated belt conveyor, vibrating screen and crusher under the screen;5. Vehicle-mounted installation support, equipment site is fast and convenient;
>>
