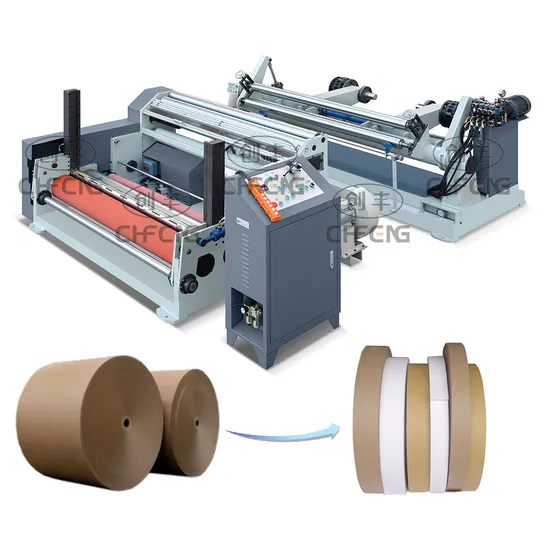

Cffq-200 Jumbo Paper Roll Slitter Rewinder Machine Paper Slitting Machine Paper Roll Cutting Machine

Product Description

Product Description
Usage: CFFQ-200 Jumbo Paper Slitting Rewinding Machine is suitable for Kraft paper; Tea paperboard; Bobbin paper; Art paper etc.
Features:
1. Double blades (upper blades and down blades) slitting. Cutting edges are more smooth and neat.
2. Adopt shaftless material loading device which can bear 2000kgs weight.
3. Pneumatic loading and unloading system; material paper roll loading and finished rolls unloading to be automatically.

Technical Parameter
CFFQ-200 Split Paper Slitter Rewinder

Main Parameters		Control System
Material paper	60-600gsm	Main motor	15kw Wannan
Unwind width	600-1600mm	Electric components	CHNT
Unwind diameter	1400mm	Pneumatic components	Jingwei
Rewind diameter	1400mm	Bearing	Haerbin
Minimum slitting width	35mm	Main Configuration
Working speed	0-200m/min	Jumbo paper loading device	1 pair (76mmID)
Speed regulation	by Inverter	Hydraulic lifting device	1 set
Material paper loading device	Shaftless	Discharging air cylinder	1 piece
Loading	Automatically by Hydraulic	Braking device	2 pieces (air brake)
Unloading	Automatically by pneumatic	Blades	20 sets (top&bottom)
Rewinding device	Air expanding shaft	Operating box	1 set
Power supply	380V 50Hz 3Phase	Tool	1 set
Measurement & Weight		Curved roller	Have
Measurement	L3300*W1200*H1200mm (unwind side)
	L3000*W1700*H1100mm (rewind side)
Weight	3000kgs

Pictures
-- Slitting& Rewinding Side.

a. Multi Blades Slitting -- minimum slitting length is 35mm.

b.Rewinding part adopted with air inflatable shaft; finished rolls can be removed more easier.



-- Shaftless Unloading System; Pneumatic Lifting (hydraulic lifting system can be customized)


-- Rewinding side has curved roller and finished rolls can be seperated automatically
