Light Weight Portable Hose Press Crimping Machine

Product Description

Product Description

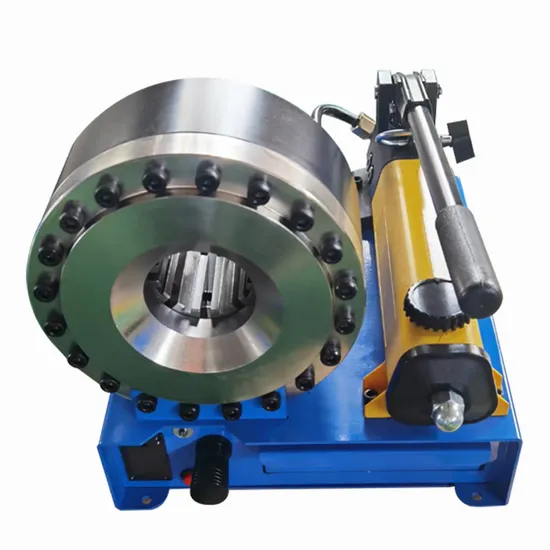

Light Weight Portable Hose Press Crimping MachineCrimping machine( Also can be called locking machine,pressing machine, crimper ,high pressure hose crimping machine, tube locking machine and so on.) is one kind of machines which can be used to lock and press the tubes assembly. It cn force contractility through the moulds to press and crimp the metal joints on the matching rubber tubes firmly.The light weight type with super small size and light weight and operate by hand no need power, so it is suitable for onsite and truck shop service

Model	F16HP
Machine Head	Forge Steel
Crimping Range	0.39"-0.77"
Crimping Range	10mm-45mm
Max Opening	+20mm
Molds	7 sets: No. 1/4", 5/16", 3/8", 1/2", 5/8", 3/4", 1"
Hose Size	1/4" to 1"
Master Die D/L	39/65mm
Motor	Hand Pump
Crimping Force	955KN
Operation Mode	Manual
Certificition	CE/ISO9001:2015
Net Weight	26KG
Dimension	331×401×271mm
Packing	Wooden Plywood Crate

2 Iinch crimping machine

4 Iinch crimping machine

6 Iinch crimping machine

Light weight manual crimping machine

Hydraulic hose skiving machine

Hydraulic hose cutting machine

Relative products
Steel wire braided hydraulic hose(one or two steel wire braided )
SAE 100R1AT/DIN EN853 1SN/DIN-EN857 1SC/SAE 100R1A/DIN EN853 1ST
SAE 100R2AT/DIN EN853 2SN/DIN-EN857 2SC/SAE 100R1A/DIN EN853 2ST
SAE 100R5/SAE 100R16/SAE 100R17/Pressure washer hose
Multi spiral hydraulic hose (four or six high tensile steel wire spiral
DIN EN856 4SP/SAE 100R9/SAE 100R12/DIN EN856 4SH/SAE 100R13/SAE 100R15
Textile Braid Hydraulic Hose
SAE 100R3/SAE 100R6
Thermoplastic hydraulic hose
SAE 100R7/SAE 100R8
Other hydraulic hose
SAE 100R4/suction oil hose
SAE 100R14/PTFE HOSE
Industrial rubber hose
steam hose
Dredging hose
Air/Water hose
Fuel/oil hose
Water suction/delivery hose
Sandblast hoseComposite hose
Cement rubber hose
Concrete rubber hose
Chemical rubber hose
Food hose
Flexible stainless steel metal hose
Company Profile
FAQ
Q1. Are you factory?
A. Yes, we are a factory since 1997, which have more than 20 years experience on rubber hose production.
Q2. Do you produce embossed marking ?
A. Yes, we do provide embossed and printing markings with different color.
Q3. Can you produce product with my own brand?
A. Yes, it's available except famous brand which are not allowed.
Q4. What is the biggest size you can produce?
A.Hydraulic hose inner diameter size up to 304mm, industrial rubber hose inner diameter size up to 1300mm.
Q5. Is colorful hose available?
A. Yes, we can produce the hose color buy your requirements.
Q5.What is your payment terms?
A. 30% deposit, 70% before delivery.
Our team
Certifications

Packaging & Shipping
Hengshui Yinli Rubber Products Co.,LTD
Add: North of Jinglong road , Jing County, Hengshui City, Hebei Province, China
