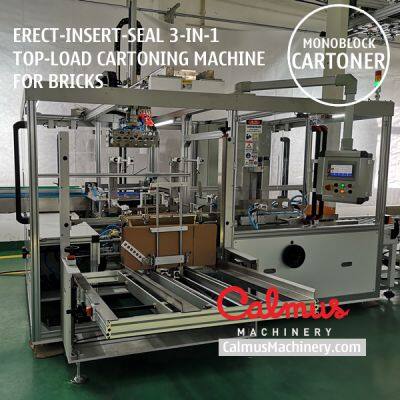

Form-Insert-Seal 3-in-1 Top-Load Case Packer | Monoblock Cartoning Machine for Packaging Bricks
This top-load case packer is a monoblock cartoning machine with corrugated cases/cartons forming, inserting and sealing functions. It employs a picker for picking and inserting brick-shaped products in multiple layers into cases from their tops.
This case packer can accommodate a wide range of case sizes and pack patterns. The cartons can be sealed with tape or hot-melt glue. It is a monoblock cartoning machine and easy to be installed.
Features:
1. Form-insert-seal 3-in-1, with a smaller footprint.
2. The products that this machine can pack through its dedicated infeed system.
3. Easy to install.
4. System pauses and alert if cartons or tapes are empty.
Specifications:
Packing type: top-load
Sealing media: tape or hot-melt glue
Compressed air: 0.4-0.8MPa
Power supply: 3 phases, customized voltage
Power consumption: 3 kW
System weight: 2,300kg
System dimensions: 3,500*1,900*2,300mm
We are aslo able to customize monoblock case packers for other shaped products than brick.
>>
