Product Details
Product Description
Product Description
Description

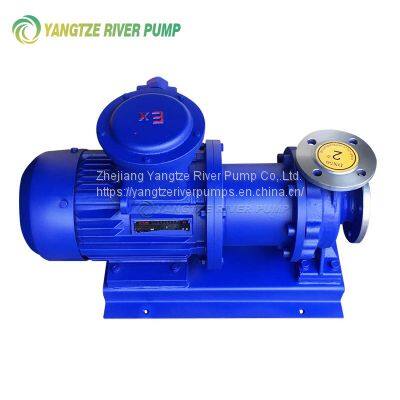

CQB Stainless Steel Magnetic Drive Centrifugal Pump is designed according to HG/T 2730 standard. It applies modern magnetic principles and uses the magnetic drive of permanent magnets to achieve non-contact transmission of torque.
Advantages
1) Extremely low risk of leakage for fluid or vapor emissions.
2) Stable Magnetic drive.
3) Few maintenance in need.
4) Long service life (around 10 years).
5） Alignment of pump and motor is needless.
Limitation
Stainless Steel Magnetic Drive Centrifugal Pump only transfer clean liquids without solids.
Product details
Working Principle: Magnetic drive Centrifugal Chemical Pump
Capacity: 4 ~ 400 m3/h
Head: 20 ~ 125 m
Speed: 1450 ~2900 RPM
Inlet diameter: 50 ~ 200 mm
Outlet diameter: 32 ~ 150 mm
Power of fitted motor: 1.1 ~ 132 kW
The highest work pressure: 1.6 Mpa
Material: SS304, SS316, SS316L
Max Temperature: 300 Degree
Viscosity: ≦32×10-6 m3/s
Warranty: 1 Year ( not include wearing parts)
Lead time: 7~30 Days
Package: International Standard Plywood Case
Application
Series CQB Stainless Steel Magnetic Drive Centrifugal Pump is a trouble-free product. No mechanical seal is required. The performance equivalent to a standard centrifugal pump.
1) Petrochemical and Fine-Chemical industries
2) Biomedical and Pharmaceutical industry
3) Metallurgy, ferrous and non-ferrous metal industry
4) Painting, plastic and rubber industries
5) Electroplating and polishing industries
6) Paper, textile and cellulose industries
7) Environmental protection, waste gas treatment
8) Food and drink industries
>>
