Concrete Mix Truck 4 Cubic Meters Cement Mixer Price Factory

Product Description

2019 New 4M3 Self loading concrete mixer truck factory Features&Advantages
Mobile concrete mixer feature combines self-loading,weighting,mixing and discharging,it can maximize and improve the job efficiency and reduce the production cost and time. -High efficiency -Capacity:12-15cubic meters per hour
100cubic meters/day
3000cubic meters /year
-Labor-saving -4 WD
-The mixing unit is hydraulic slewing 270
degree for high discharge over 1.8m to the four sides of the vehicle.
Loading,pumping,mixing,delivering and discharge.
Ultimate tank capacity technology can discharge with different angles by chute
The clever discharge cone is designed,to provide stronger material sealing capacity and higher filling rate,thus improving the loading capacity of the tank up to 6%. Loading capacity is larger for the same volume. The center of gravity is low for the same loading capacity. Swing tank easy discharge to different way.
High-strength wear-resistant application.
Tank and blades are made of high-strength wear-resistant steel,with service life increased by 30%. Hoppers and detachable chutes are made of multilayer high-strength wear-resistant liner plate,with service life increased by 50%.
Efficient hydraulic drive system
As the complete vehicle is equipped with four-wheel drive,it can be used for efficient and stable concrete production in harsh working conditions.
Four-dimensional mixing technology.
It can be used for aggregate weighing in the process of loading,thus ensuring that concrete meets the construction requirements and weighing precision within ±3%.

·Loading shovel:effective capacity per loading complete with hydraulic opening gate with bigger blade.
·Joystick:All hydraulic functions of shovel controlled by a single joystick.
Specification

Name	Item	Specification
	Net	8300 KG
	Gross	12675KG
	Transmission	Full Hydraulic
		4 WD
	Brake	Air Brake
	Chassis	Off-road
	Tread	1880
	Wheelbase	2250mm
	Loader bucket	capacity		0.6m3
		Control		Hydraulic
	Tilt angle	30%
	Speed	High		0-25KM/H
		Low		0-20KM/H
	Mini turning radius	6.5M/R
	Tyre model	16/70-20
Engine	Type	YUNNEI
	Rated Power/RPM	92KW/2200RPM
	Max.Torque/RPM	460N.M/1400RPM
	Cylinder	4
	Starter	Electric
	Cooling type	water cooling
Maxing Drum	Output capacity	4M3
	Bank Angle	16 °
	Rotation Angle	19-21R/min
Chute	Swing Angle	≥60°
	Angle control	Hydraulic
	Size	Long:176cm
		Short:40cm
Loader	Weighing model	computer control
		Concrete Standard			C15.C20.C25 C30
	Accuracy	Cement			≤±2%/time
		Relative Error			≤±3%/time
		water			≤±1%/time
		dditive			≤±1%/time
		Admixture			≤±2%/time
Loader control	Hydraulic 4 way stick
Hydraulic oil tank	240L
Water tank	550L
Over size	7500*2700*3380mm

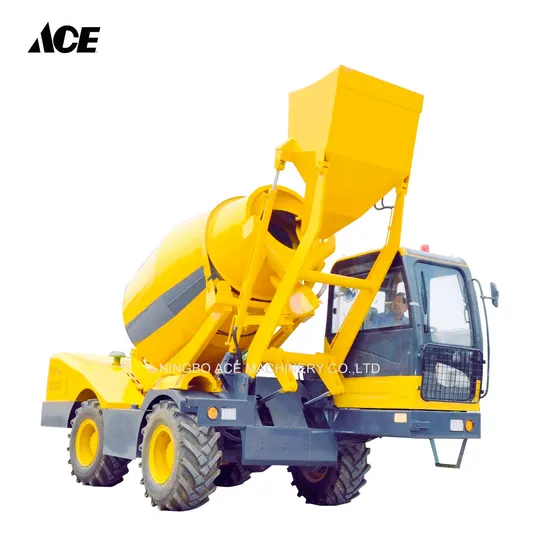

Product photograph

Our factory

---
