Product Details
Product Description
Product Description
Sawdust dryer is used for pellet sawdust or powder sawdust. Wet materials are continuously sent into the drum through a screw conveyor and then get separated and pushed by the high-speed hot flow. The moisture in wet materials is taken away in this process and then we get powder or pellet dry materials.
Sawdust dryer is widely used for the drying of straw briquette, charcoal, wood pellet fuel, sawdust briquette, corn straw, soybean straw, cotton stalk, wheat straw, sorghum stalk, wood shavings, sawdust, gingko leaf, mulberry leaves, and other fiber materials.

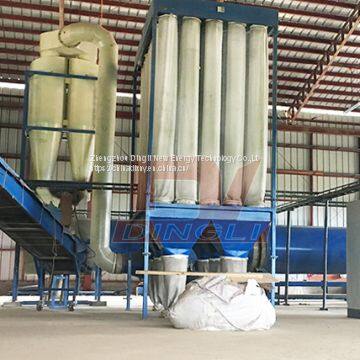

Sawdust dryers are consist of heating furnace, feeding port, drum, filter drum, conveying pipe, cooling drum and discharging port.
Wood sawdust rotary dryer is used for drying materials with a certain humidity lightweight material, such as bean dregs, wood chips, cassava dregs, Marc, distiller's grains, and others. Our special design wood chips rotary dryer has a strong adaptability of materials and it can dry various materials. This type of wood chips rotary dryer operation is very simple and liable. Also our professional wood chips rotary dryer has played an important role in various drying industries,wood chips rotary dryer is used for drying materials with humidity or granularity in the industries of mineral dressing, building material, metallurgy, and chemical.wood chips rotary dryer can be used for drying many kinds of materials and with convenient and reliable operation; therefore, it has been widely used.
ModelCapacit
y(t/d)
Vaporization capacity
(t/h)
Early moistur
e(%)
Final Moisture
(%)
Drying Temperature
(℃)
Total motor power
(kw)
Total weight
(kg)
Cover Area
(m²)
| DLGT1210 | 44.0-19.5 | 0.565 | 35-50% | 12-15% | 270±30℃ | 28 | 13500 | 5m×15m |
| DLTG1409 | 46.5-20.5 | 0.595 | 34 | 15500 | 5m×15m |
| DLGT1615 | 88.0-39.0 | 1.130 | 45 | 19500 | 6m×22m |
| DLTG2010/3 | 144.5-63.5 | 1.850 | 78 | 25000 | 8m×18m |
| DLTG2210/3 | 154.0-67.5 | 1.976 | 85 | 27000 | 8m×18m |
| DLTG2510/3 | 193.0-83.5 | 2.427 | 110 | 35000 | 10m×18m |
| DLTG2512/3 | 227.0-100.0 | 2.912 | 125 | 38000 | 10m*20m |
| DLTG2912/3 | 268.0-120.0 | 3.432 | 135 | 43500 | 10m*22m |
Environmental ProtectModular dust collecting and purifying heat recycling configuratio
>>
