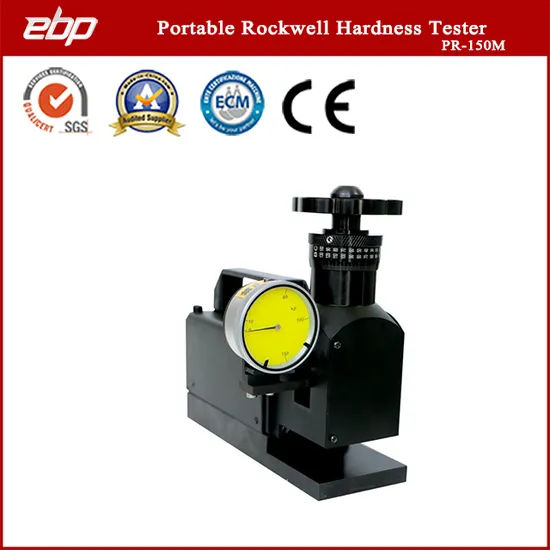

Manual Magnetic Portable Rockwell Hardness Tester

Product Description

Product Description Manual Portable Rockwell Hardness Tester
Simple Introduce:
Fix Rockwell test head to the surface of iron and steel parts to test the hardness by applying magnetic force. Follow Rockwell hardness test method completely and the test condition complies with standard of ISO 6508 and ASTM E 18.
The magnetic Rockwell hardness tester is mainly applied in on-site quick test body hardness of steel parts.
Test hardness of steel plate, pipe, axis, mould, huge forgings and huge and medium-size heat treatment parts if surface available.
Test hardness of weld joint in boiler, pressure vessels, and pressure pipes.
Replace low accurate and reliable Leeb hardness testers.
Product Parameters Technical specification:

Initial test force	10kgf
Main test force	60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N)
Indenter	120°diamond Rockwell indenter, φ1.588mm hard alloy ball indenter
Measure range	20-95HRA, 10-100HRBW, 20-70HRC
Indication error	Complying with ISO6508 and ASTM E18
Repeatability error	Complying with ISO6508 and ASTM E18
Test Resolution	0.5HR
Weight	13kg
Size	232*131*171mm

Standard delivery:

No.	Name	Qty
1	PR-150M Tester	1 set
2	120°diamond Rockwell indenter	1 piece
3	φ1.588mm hard alloy ball indenter	1 piece
4	Rockwell hardness block	5 pieces
5	Metal Base	1 piece
6	Manual book	1 piece
7	Carrying case	1 piece

Detailed Photos
Details:
Comany Profile & Certificates
FAQ

---
