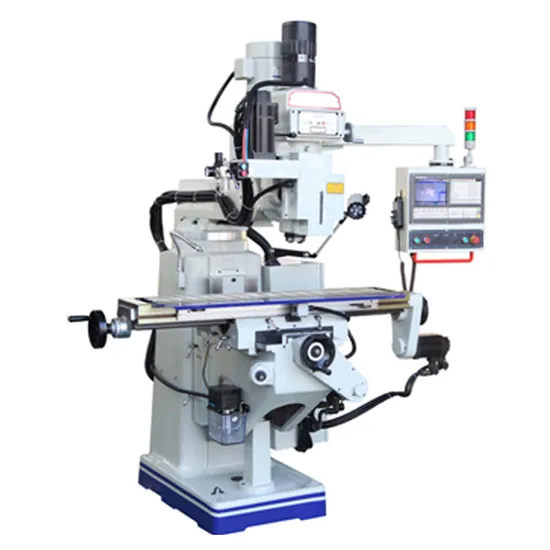

China Vertical Turret CNC Milling Machine 3 Axis 4 Axis Xk6325

US$12,557.00 1 unit (MOQ)

Basic Info.

Model NO.
XK6325
Type
Knee-and-Column Milling Machine
Object
Gear
Structure
Ram
Milling Cutter Type
Three Blade Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Condition
New
Table Size
254X1370mm
X Travel
870mm
Y Travel
400mm
Table Load
280kg
T Slot
3X16
Spindle Taper
R8
Distance From Spindle to Table
0-400mm
Spindle Speed
66-4540rpm
Motor
5HP
Transport Package
Wood Case
Specification
ISO9001, CE
Trademark
UNI-TECH
Origin
China
HS Code
84595900
Production Capacity
100sets/Month

Product Description

China Vertical Turret CNC Milling Machine 3 axis 4 axis XK6325
1.System: SIEMENS/GSK/KND/FANUC
2.Meehannite cast iron
3.Taiwan milling head
4.CE,ISO9001
5.Ball leadscrew from Taiwan
SPECIFICATION //CODE NO. UNIT XK6323A XK6323B XK6325 XK6325A XK6325B XK6325C XK6325D XK6330 XK6330A
63006 63007
Table size mm 230*1067 254*1270 305*1370
230*1246 254*1370 305*1500
T-slot 3*16
Table loaded kg 200 280 350
Long travel mm 550 750 800
740 850 900
Cross travel mm 300 400 380 380 400 400 360 360
Z travel mm
X/Y/Z rated power feed mm/min 5000
X/Y/Z spindle motor power kw 1
Vertical travel mm 380 400 410
Ram travel mm 315 465 500
Distance between spindle and table mm 0-380 0-400 0-410
Head Spindle speed standard rpm 50HZ:60-4500/60HZ:80-5440
optional 65-4200 60-3750
Spindle hole taper standard /R8/optional/ISO40 ISO40
Motor power HP 3 5
Head Head swivel 90° 90° 90° 90° 90° 90° 90° 90° 90°
Head tilting 90° 90° 90° 90° 90° 90° 90° 90° 90°
Control system HD-500 , (KND/HD500/GSK)
Dimension of package cm 165*190*220 190*200*223 200*200*225
Weight kg 1200 1500 1700 1900

Standard accessories:
1.Draw bar
2.Tool box and tools
3. Woeking lamp
4.Elector lubricating pump
5.Hung up control panel
6.Cooling system
7.Oil collecting plate
8.Plastic splashing guard
Optional accessories:
1.Air draw bar
2.Machine vise
3.Universal clamping kits
4.Collets and chuck
