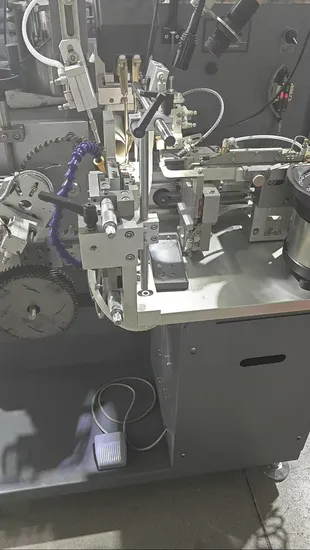

Advanced Automatic Alloy Welding Machine for Precision Saw Blades

Product Description

Machine features
1. This machine is a specialized machine for automatic welding of alloy circular saw blades.
2. Support functions such as middle welding, left and right welding, gear separation welding, ultra-thin film, etc.
3. Automatic up and down saw blade, one person can operate multiple equipment.
4. Fully automatic gear selection, feeding, welding, tempering, and customization according to customer requirements.
5. Equipped with an automatic smoke remover for easy removal of welding fumes.
6.The reinforced air claw structure is adopted.
7.The upper paw stroke is changed to the motor drive, which is more stable and efficient.
Technical parameter

Blade diameter	φ100-φ255			mm
Welding efficiency	750-850			T/hour
Alloy length	3.5-10			mm
Alloy width	1.5-6.5			mm
Alloy thickness	1.5-3.5			mm
Welding accuracy	≤0.08			mm
Operating air pressure	≥0.45			MPa
Working water pressure	≥4			kg/cm²
Supply voltage	AC220V 50Hz
Power	6.5			KW
Weight	300			kg
Machine size	1150×1060×1430			mm

---
