Bacteria Centrifuge Separator Tube Reducing Machine Tubular Centrifuge

Product Description

Working Principle

This kind of separator is consisted of main body, driving device, bowl, collecting pan and liquid-in bearing seats. The upper part of the bowl is flexible mainshaft and the lower part of the bowl is damp floating bearing. The mainshaft connected with a driven wheel by the buffer coupling seat, power transmitted by the motor to the drive wheel through the transmission belt and the tensioner to make the bowl rotate around its own axis at a high speed therefore it forms a strong centrifugal force field. The product sprays into the liquid inlet by the bottom liquid inlet; liquid is forced by centrifuge force to flow upward along the inner wall of the bowl and then is separated into different layers according to different density.
Processing Drawing:

Main Features

GF/GQ Model Tubular Separatoris used for separating various emulsion, especially for liquid-liquid separation with slight gravity difference and liquid-liquid-solid separation with a little foreign matter, such as transformer oil, turbine oil, lubricant, fuel oil, dye, fat, sapnificatio and various micropowder and for purifying span-80 liquid separating various oral liquid and medical liquid and "920" and plasma and biologic medicine, extracting plasma from animals' blood, refining phosphatide of bean, etc. and treating sewage and separating oil and water.
Type GQ separator is used for separation of various suspension which is difficult to be separated especially for separation of solid-liquid suspension which has low concentration, high viscosity, small granularity and very small difference of solid-liquid gravity, such as clarification of various oral liquid, desludgemetn of coal tar and graphite, extraction of protein, seaweed and jelly, refinement molasses, separation of blood and settlement of vaccine hypha and various dextroses and purifying paint, dye, various resin and rubber solution molasses and refinement or vegetable oil.

Equipment Photo:

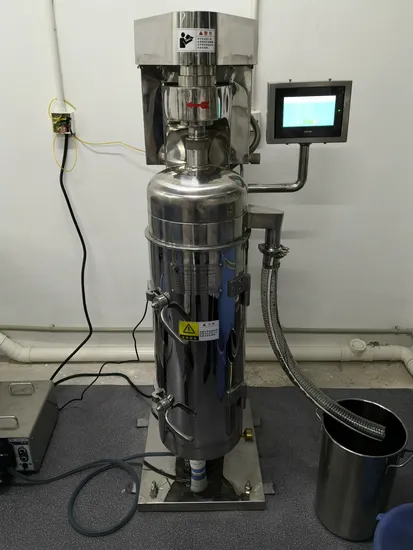

Tubular Centrifuge Separator GF Type ( Front View)
GQ Tubular centrifuge:

Technical Data

Item	Unit	GQL75	GFL105	GQL105	GFXL112	GQL150
Bowl Diameter	mm	75	105	105	112	150
Effective Height	mm	430	730	730	770	700
Settling Volume	liter	2.0	5.5	5.5	7.5	10
Rotating Speed	r/min	20000	16000	16000	16250	12000
Centrifugal Force		16770	15025	15025	16530	15570
Handling Capacity	L/H	~500	~1200	~1200	~2000L	~3000
Motor Power	Kw	1.5	2.2	2.2	3.0	4.0
Net Weight	Kg	350	450	450	550	550
Cooling Area	m2	0.5	0.75	0.75	1.0	1.25

Working shop show:
Packing show:
FAQ
Q1: Where can I get product & price information?
A1: Send us inquiry or email directly, then we will contact you.
Q2: How can I make sure your machinery is suitable for me?
A2: Please tell all the separation information you know, such as your raw liquid,
two-phase or three-phase separation, solid content in liquid, solid size, the purpose, etc. After analyzing your information, we will to choose a suitable model for you, and send the details and videos to you.
Q3: What should I do if I want to see the separation effect?
A3: If you can come to our factory with the raw liquid, we will provide test service. Or you deliver the raw liquid to us, and we will do a test, and supply you the testing videos.
Q4: How to enjoy the OEM services?
A4: As the manufacturer of the machine, we will try our best to satisfy you if you have any specific requirement, such as the cover device, drum size, motor voltage, etc.

---
