Nonwoven Machine Needle Punching Geotextile Production Line for Construction

Product Description

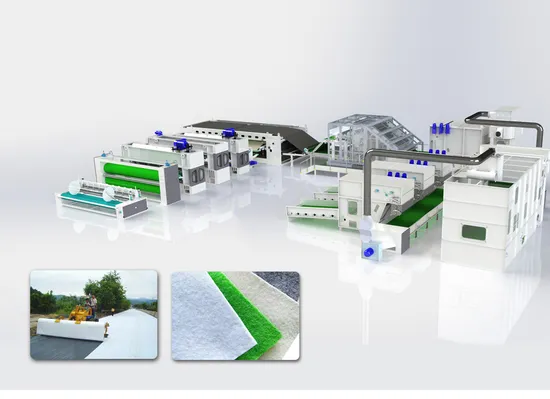

Nonwoven Geotextile Production Line

Warranty of Core Components	1 year
Machine Type	Nonwoven Geotextile Production Line
after-sale service	overseas installaton and guidance
Dimension(L*W*H)	customized
max working width	10000mm

Production description:
This production line is mainly used for producing geotextile fabrics,which is widely used in construction industry such as espressway,railway,sea bunding and some other constuction fields.
Main machines:
Electronic Weighing Opening system bale opener: Suitable for opening and mixing of two or more fibers for pre-treatment system.
Pre-opener: open and mix of single or multiple specifications of raw materials and inputs them to the next process through a cotton-feeding fan with strong magnets for impurity removal.
Big cabin blender: Provides full mixing and storage for fibers after various initial openings to facilitate continuous production.
Vibrating feeding hopper: Forms a uniform cotton layer from the mixed fibers and continuously sends them to the next process.
Carding Machine: Suitable for carding fibers into a mesh.
Cross lapper: lays the mesh uniformly and folds it crosswise to the desired width and thickness, then sends it to the next process.
Feeding apparatus: Feeds the laid cotton mesh of different thicknesses uniformly into the pre-needling area.
Needle loom: The needle board drives the needle up and down at high frequency, and the hook on the needle drives the fibers to intertwine with each other, forming a dense non-woven fabric.
FAQ:
F:Are you a factory or a foreign trade company ?
A:We are the manufacturer of nonwoven machine with 30 years' experience.
F:How can we reach your factory?
A:Our factory is located in Changshu,Jiangsu province.2 hours' drive from Shanghai.
F:If we buy the equipments and don't know how to install and operate them,what should we do?
A:Our engineers will come to your factory for installation and training to ensure that your employees can operate the machines,we will guide your teams until you can produce the product on your own.
F:I have some specific requirements about the equioments,can you realize them?
A:Yes,most of our equipments are customized,so please don't hesitate to tell us what you need and we will do our best to meet your requirements.
F:How long is the warranty period?
A:12 months after the installation.
About us:
Changshu Weicheng Nonwoven Equipment Co., Ltd. is one of the earliest manufacturers of non-woven equipment in China. As a member of the Non-woven-cloth Special Committee of the Textile Academy of China, the company has passed the qualification of ISO9001 quality system and ISO14000. The company has special production machines and production lines, high-tech capacity, and a comprehensive service system that have won the trust and praise of clients worldwide.
As most of our equipments are customized,so please don't hesitate to tell us your specific needs and we will do our best to realize them.

---
