Intermittent Stainless Catalyst Steel Stirring Small Reactor

Product Description

Product Parameters

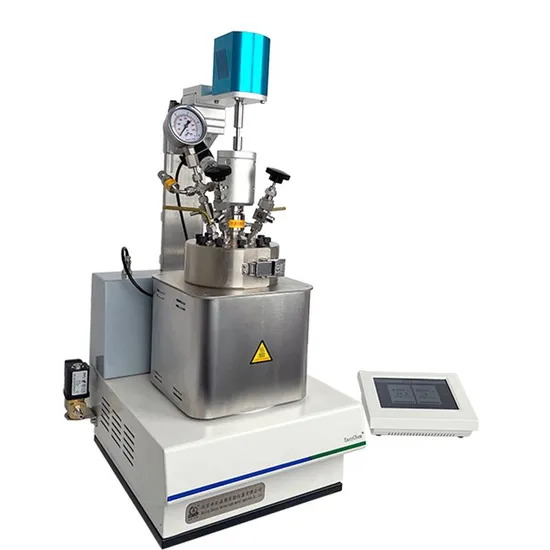

The ET250 mobile touch screen micro reactor is a new type of reactor that is extended from the EasyChem series micro reactor.
It is a direct connected paddle type stirring device with strong stirring force and sufficient reaction. It is equipped with a mobile touch screen MRSC-ET control system V1.06, which realizes pressure, temperature, rotation speed, torque, curve display, and data USB export function. ET250 is a small volume model in this series, which stands out in the small volume experimental system. It has a volume of 10ml and a total volume of ≥ 250ml, including the reaction section, inlet and outlet valves, mixing, temperature measurement, heating, and control sections. It is fully equipped and suitable for various reaction experimental systems.
The EasyChem mobile touch screen micro reactor series is suitable for small sample reactions, and is an ideal reaction device for testing expensive or low yield raw material samples at high temperatures, high viscosity values, or containing magnetic media. Easy to operate, well-designed, compact and lightweight, convenient for the movement and operation of reaction vessels, widely used in fields such as petroleum, chemical, pharmaceutical, biology, food, materials, metallurgy, etc. Research experiments involving catalytic reactions, polymerization reactions, supercritical reactions, high-temperature and high-pressure synthesis, hydrogenation reactions, etc.
Technical parameters of EasyChem mobile touch screen desktop micro reactor:

Specification and model	10ml,25m,50ml,100ml,250ml,500ml,1000ml
texture of material	316L stainless steel (available in other alloy materials such as Hastelloy C276, titanium alloy TA2, Monel alloy K400, etc.)
working temperature	Room temperature~350 ºC
control accuracy	±1ºC
working pressure	10Mpa; (Customizable specifications such as 20Mpa, 30Mpa, etc.)
Mixing method	Direct drive magnetic coupling mechanical stirring
Heating method	Module electric heating
Control system	MRSC-ET mobile touch screen control system V1.06, achieving functions such as pressure, temperature, revolutions, torque, curve display, and data USB export
Mixing speed	0~1200rpm; Stepless speed regulation, controllable speed
Mixing direction	Supports bidirectional mixing in both directions
Sealing method	Quick opening snap ring sealing structure, A-type dual line sealing
Temperature measurement	K-type thermocouple and thermowell made of the same material as the kettle body
Over temperature protection	Overtemperature and fault sound and light alarm system
Timing function	The timing is divided into two modes: constant temperature timing and running timing
Power configuration	200 - 240 V /AC,50 - 60 Hz

EasyChem mobile touch screen micro reactor is a type of production or experimental equipment that integrates high-pressure reaction vessels, reaction condition control systems, raw material feeding, and product export systems. Integrated with excellent technology from Century Senlong.
Main features: High temperature and high pressure resistance, safe and leak free, suitable for most experimental systems. The kettle head is movable, directly connected magnetic coupling mechanical stirring, embedded heater, quick opening snap ring sealing structure, A-type dual line sealing, K-type thermocouple, MRSC-ET mobile touch screen control system, realizing pressure, temperature, rotation speed, torque, curve display, data USB export, stirring speed control and PID temperature controller, bidirectional communication cable, temperature and rotation speed control, working time, self tuning calibration.
The user scope covers 985/211 universities and various supporting laboratories, local research institutes/institutes, various chemical material enterprises, as well as state-owned enterprises such as PetroChina , and maintains long-term stable cooperative relationships!

---
