House Residential Commercial on off Grid Hybrid 1kw 5kw 6kw 7.6kw 8kw 10kw 12kw 15kw 20kw 50kw PV Solar Panel Module Kit Energy Power System

Product Description

20kw solar module cell 30kw 40kw 50kw 60kw 80kw 100kw 150kw 200kw 500kw power energy systems 10kw solar panel system Product Description
Solar Energy System Overview A solar energy system converts sunlight into electricity, providing renewable energy for homes, businesses, and industries. As environmental awareness grows and technology advances, solar power has become a crucial clean energy source. Solar systems can reduce dependence on fossil fuels, lower greenhouse gas emissions, cut electricity costs, and enhance energy self-sufficiency.
Types of Solar Energy Systems Home solar energy systems are mainly categorized into three types:
On-Grid Solar System: Connected to the power grid, allowing users to draw electricity from both their solar panels and the grid. Excess energy produced can be fed back to the grid, and users may earn credits through net metering. Off-Grid Solar System: Independent of the power grid, typically equipped with battery storage systems, suitable for remote areas or households seeking complete self-sufficiency. Hybrid Solar System: Combines the benefits of both on-grid and off-grid systems, featuring grid connectivity along with battery storage for increased flexibility and reliability. Configuration Details of a Solar Panel System Solar Panels: Convert sunlight into direct current (DC) electricity and are the core component of the system. Inverter: Converts the DC electricity generated by the solar panels into alternating current (AC) electricity for household or grid use. Battery Storage: Stores excess electricity generated during the day for use at night or during cloudy periods, enhancing the system's reliability and independence. Mounting System: Secures and supports the solar panels, ensuring they are positioned to maximize sunlight exposure. Cables and Connectors: Connect the solar panels, inverter, and battery storage system, facilitating the efficient transmission of electricity. Monitoring System: Monitors the performance and energy production of the solar system, as well as remotely monitoring and managing system status. These key configuration details work together to efficiently convert solar energy into electricity, providing a stable power supply.

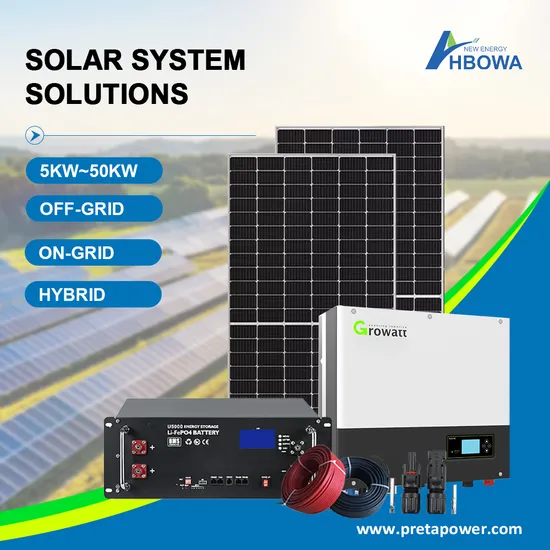

5KW/10KW/15 KW /20KW/25KW/30KW Off Grid Hybrid Solar Power System Components List
Parts	Description	Quantity
		5KW	10KW	15KW	20KW	25KW	30KW
MPPT Controller Inverter	Model: SPH 3000-6000TL AC Nominal Power: 3000W AV Voltage:230V Max. DC Voltage:550V Max. recommended PV Power:6500W	1 PC	2PC	3PC	4PC	5 PC	6 PC
Lifepo4 battery pack	Model:51.2V 100AH Rated Voltage:51.2V Rated Capacity:10AH Net Weight:40kg DOD depth:100%	1 PC	2 PC	3 PC	4 PC	5 PC	6 PC
PV Panel	Half-cut mono Solar Panel Power: 550W Application Class: A Weight: 28.6KG Dimension: 2278*1134*35mm Warranty: 25 years	9 PCS	18 PCS	27 PCS	36 PCS	45 PCS	54 PCS
PV Panel Mounting Bracket	Customized, Anti-erosion Aluminum Alloy for rooftop or ground mounting	1 Set	1 Set	1 Set	1 Set	1 Set	1 Set
Power Distribution Box	Customized,Including leakage circuit breaker, 32A 250V air-switch,16A by-pass switch etc	1 Set	1 Set	1 Set	1 Set	1 Set	1 Set
Cable	Model: PV-1*6mm2 Special high Anti-UV and Wear-Resistant PV cable WorkingTemperature:-40ºC-90ºC	40 M	80 M	120 PCS	160 PCS	200 PCS	240 PCS
PV Waterproof Connector	Model:MC4 Rated Voltage: 1000V DC Rated Current: 30A IP Rate: IP67	10 Pairs	20 Pairs	30 Pairs	40 Pairs	50 Pairs	60 Pairs

Configuration detail
Packaging & Shipping
Project
Company Profile
Payment

Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment
		FOB
		CFR(C&F)	30% T/T in advance, paid the balance against copy of B/L
		CIF
	L/C	L/C amount above 50,000 usd, we can accept L/C at sight
	Paypal	Amount lower than 5000usd
	West Union
Delivery Time	7~10days after receiving payment for one container

We welcome use Trade Assurance, you'll enjoy:
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount

---
